STK CMSIS RTOS2 API

CMSIS RTOS2 interface for C++ API of SuperTinyKernel RTOS. More...

Classes
struct	osVersion_t
	Version information. More...
struct	osThreadAttr_t
	Attributes structure for thread. More...
struct	osTimerAttr_t
	Attributes structure for timer. More...
struct	osEventFlagsAttr_t
	Attributes structure for event flags. More...
struct	osMutexAttr_t
	Attributes structure for mutex. More...
struct	osSemaphoreAttr_t
	Attributes structure for semaphore. More...
struct	osMemoryPoolAttr_t
	Attributes structure for memory pool. More...
struct	osMessageQueueAttr_t
	Attributes structure for message queue. More...

Macros
#define	osWaitForever   0xFFFFFFFFU
	Wait forever timeout value.
#define	osFlagsWaitAny   0x00000000U
	Wait for any flag (default).
#define	osFlagsWaitAll   0x00000001U
	Wait for all flags.
#define	osFlagsNoClear   0x00000002U
	Do not clear flags which have been specified to wait for.
#define	osFlagsError   0x80000000U
	Error indicator.
#define	osFlagsErrorUnknown   0xFFFFFFFFU
	osError (-1).
#define	osFlagsErrorTimeout   0xFFFFFFFEU
	osErrorTimeout (-2).
#define	osFlagsErrorResource   0xFFFFFFFDU
	osErrorResource (-3).
#define	osFlagsErrorParameter   0xFFFFFFFCU
	osErrorParameter (-4).
#define	osFlagsErrorISR   0xFFFFFFFAU
	osErrorISR (-6).
#define	osFlagsErrorSafetyClass   0xFFFFFFF9U
	osErrorSafetyClass (-7).
#define	osThreadDetached   0x00000000U
	Thread created in detached mode (default).
#define	osThreadJoinable   0x00000001U
	Thread created in joinable mode.
#define	osThreadUnprivileged   0x00000002U
	Thread runs in unprivileged mode.
#define	osThreadPrivileged   0x00000004U
	Thread runs in privileged mode.
#define	osThreadZone_Pos   8U
	MPU protected zone position.
#define	osThreadZone_Msk   (0x3FUL << osThreadZone_Pos)
	MPU protected zone mask.
#define	osThreadZone_Valid   (0x80UL << osThreadZone_Pos)
	MPU protected zone valid flag.
#define	osThreadZone(n)
	MPU zone value in attribute bit field format.
#define	osThreadProcessor(n)
	Thread processor number for SMP systems.
#define	osMutexRecursive   0x00000001U
	Recursive mutex.
#define	osMutexPrioInherit   0x00000002U
	Priority inherit protocol.
#define	osMutexRobust   0x00000008U
	Robust mutex.
#define	osSafetyClass_Pos   16U
	Safety class position.
#define	osSafetyClass_Msk   (0x0FUL << osSafetyClass_Pos)
	Safety class mask.
#define	osSafetyClass_Valid   (0x10UL << osSafetyClass_Pos)
	Safety class valid flag.
#define	osSafetyClass(n)
	Safety class.
#define	osSafetyWithSameClass   0x00000001U
	Objects with same safety class.
#define	osSafetyWithLowerClass   0x00000002U
	Objects with lower safety class.
#define	osErrorId   0xFFFFFFFFU
	osError (-1).
#define	TZ_MODULEID_T

Typedefs
typedef void(*	osThreadFunc_t) (void *argument)
	Entry point of a thread.
typedef void(*	osTimerFunc_t) (void *argument)
	Timer callback function.
typedef void *	osThreadId_t
typedef void *	osTimerId_t
typedef void *	osEventFlagsId_t
typedef void *	osMutexId_t
typedef void *	osSemaphoreId_t
typedef void *	osMemoryPoolId_t
typedef void *	osMessageQueueId_t
typedef uint32_t	TZ_ModuleId_t

Enumerations
enum	osKernelState_t {   osKernelInactive = 0 ,   osKernelReady = 1 ,   osKernelRunning = 2 ,   osKernelLocked = 3 ,   osKernelSuspended = 4 ,   osKernelError = -1 ,   osKernelReserved = 0x7FFFFFFF }
	Kernel state. More...
enum	osThreadState_t {   osThreadInactive = 0 ,   osThreadReady = 1 ,   osThreadRunning = 2 ,   osThreadBlocked = 3 ,   osThreadTerminated = 4 ,   osThreadError = -1 ,   osThreadReserved = 0x7FFFFFFF }
	Thread state. More...
enum	osPriority_t {   osPriorityNone = 0 ,   osPriorityIdle = 1 ,   osPriorityLow = 8 ,   osPriorityLow1 = 8+1 ,   osPriorityLow2 = 8+2 ,   osPriorityLow3 = 8+3 ,   osPriorityLow4 = 8+4 ,   osPriorityLow5 = 8+5 ,   osPriorityLow6 = 8+6 ,   osPriorityLow7 = 8+7 ,   osPriorityBelowNormal = 16 ,   osPriorityBelowNormal1 = 16+1 ,   osPriorityBelowNormal2 = 16+2 ,   osPriorityBelowNormal3 = 16+3 ,   osPriorityBelowNormal4 = 16+4 ,   osPriorityBelowNormal5 = 16+5 ,   osPriorityBelowNormal6 = 16+6 ,   osPriorityBelowNormal7 = 16+7 ,   osPriorityNormal = 24 ,   osPriorityNormal1 = 24+1 ,   osPriorityNormal2 = 24+2 ,   osPriorityNormal3 = 24+3 ,   osPriorityNormal4 = 24+4 ,   osPriorityNormal5 = 24+5 ,   osPriorityNormal6 = 24+6 ,   osPriorityNormal7 = 24+7 ,   osPriorityAboveNormal = 32 ,   osPriorityAboveNormal1 = 32+1 ,   osPriorityAboveNormal2 = 32+2 ,   osPriorityAboveNormal3 = 32+3 ,   osPriorityAboveNormal4 = 32+4 ,   osPriorityAboveNormal5 = 32+5 ,   osPriorityAboveNormal6 = 32+6 ,   osPriorityAboveNormal7 = 32+7 ,   osPriorityHigh = 40 ,   osPriorityHigh1 = 40+1 ,   osPriorityHigh2 = 40+2 ,   osPriorityHigh3 = 40+3 ,   osPriorityHigh4 = 40+4 ,   osPriorityHigh5 = 40+5 ,   osPriorityHigh6 = 40+6 ,   osPriorityHigh7 = 40+7 ,   osPriorityRealtime = 48 ,   osPriorityRealtime1 = 48+1 ,   osPriorityRealtime2 = 48+2 ,   osPriorityRealtime3 = 48+3 ,   osPriorityRealtime4 = 48+4 ,   osPriorityRealtime5 = 48+5 ,   osPriorityRealtime6 = 48+6 ,   osPriorityRealtime7 = 48+7 ,   osPriorityISR = 56 ,   osPriorityError = -1 ,   osPriorityReserved = 0x7FFFFFFF }
	Priority values. More...
enum	osTimerType_t {   osTimerOnce = 0 ,   osTimerPeriodic = 1 }
	Timer type. More...
enum	osStatus_t {   osOK = 0 ,   osError = -1 ,   osErrorTimeout = -2 ,   osErrorResource = -3 ,   osErrorParameter = -4 ,   osErrorNoMemory = -5 ,   osErrorISR = -6 ,   osErrorSafetyClass = -7 ,   osStatusReserved = 0x7FFFFFFF }
	Status code values returned by CMSIS-RTOS functions. More...

Functions
osStatus_t	osKernelInitialize (void)
osStatus_t	osKernelGetInfo (osVersion_t *version, char *id_buf, uint32_t id_size)
osKernelState_t	osKernelGetState (void)
osStatus_t	osKernelStart (void)
int32_t	osKernelLock (void)
int32_t	osKernelUnlock (void)
int32_t	osKernelRestoreLock (int32_t lock)
uint32_t	osKernelSuspend (void)
void	osKernelResume (uint32_t sleep_ticks)
osStatus_t	osKernelProtect (uint32_t safety_class)
osStatus_t	osKernelDestroyClass (uint32_t safety_class, uint32_t mode)
uint32_t	osKernelGetTickCount (void)
uint32_t	osKernelGetTickFreq (void)
uint32_t	osKernelGetSysTimerCount (void)
uint64_t	osKernelGetSysTimerCount64 (void)
uint32_t	osKernelGetSysTimerFreq (void)

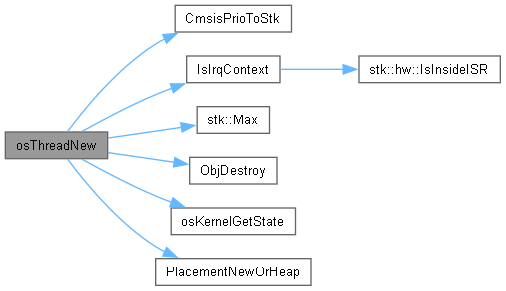

osThreadId_t	osThreadNew (osThreadFunc_t func, void *argument, const osThreadAttr_t *attr)
const char *	osThreadGetName (osThreadId_t thread_id)
uint32_t	osThreadGetClass (osThreadId_t thread_id)
uint32_t	osThreadGetZone (osThreadId_t thread_id)

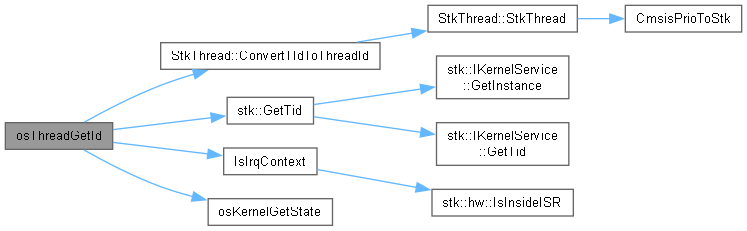

osThreadId_t	osThreadGetId (void)
osThreadState_t	osThreadGetState (osThreadId_t thread_id)
uint32_t	osThreadGetStackSize (osThreadId_t thread_id)
uint32_t	osThreadGetStackSpace (osThreadId_t thread_id)
osStatus_t	osThreadSetPriority (osThreadId_t thread_id, osPriority_t priority)
osPriority_t	osThreadGetPriority (osThreadId_t thread_id)
osStatus_t	osThreadYield (void)
osStatus_t	osThreadSuspend (osThreadId_t thread_id)
osStatus_t	osThreadResume (osThreadId_t thread_id)
osStatus_t	osThreadDetach (osThreadId_t thread_id)

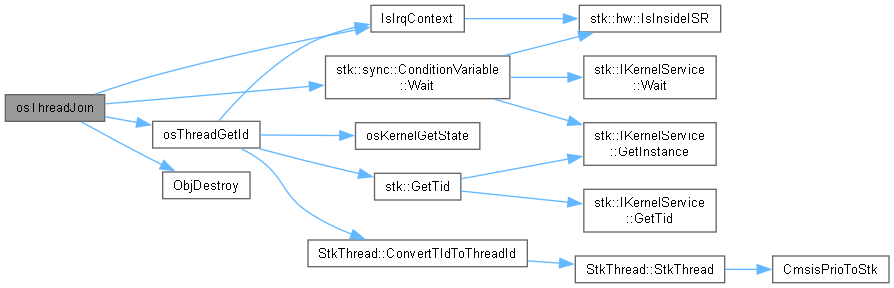

osStatus_t	osThreadJoin (osThreadId_t thread_id)

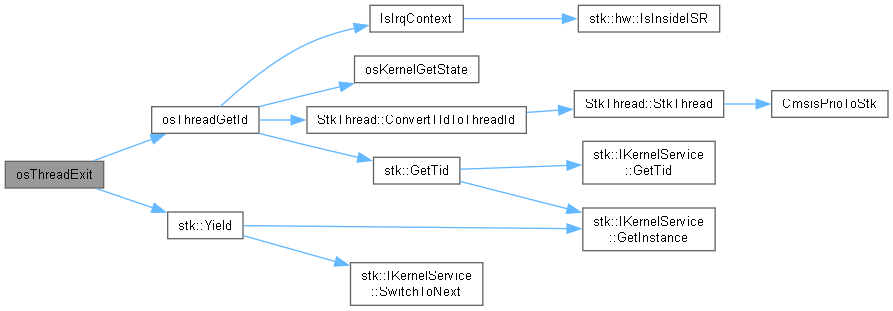

void	osThreadExit (void)
	Terminate execution of current running thread.
osStatus_t	osThreadTerminate (osThreadId_t thread_id)
osStatus_t	osThreadFeedWatchdog (uint32_t ticks)
osStatus_t	osThreadProtectPrivileged (void)
osStatus_t	osThreadSuspendClass (uint32_t safety_class, uint32_t mode)
osStatus_t	osThreadResumeClass (uint32_t safety_class, uint32_t mode)
osStatus_t	osThreadTerminateZone (uint32_t zone)
osStatus_t	osThreadSetAffinityMask (osThreadId_t thread_id, uint32_t affinity_mask)
uint32_t	osThreadGetAffinityMask (osThreadId_t thread_id)
uint32_t	osThreadGetCount (void)
uint32_t	osThreadEnumerate (osThreadId_t *thread_array, uint32_t array_items)
uint32_t	osThreadFlagsSet (osThreadId_t thread_id, uint32_t flags)

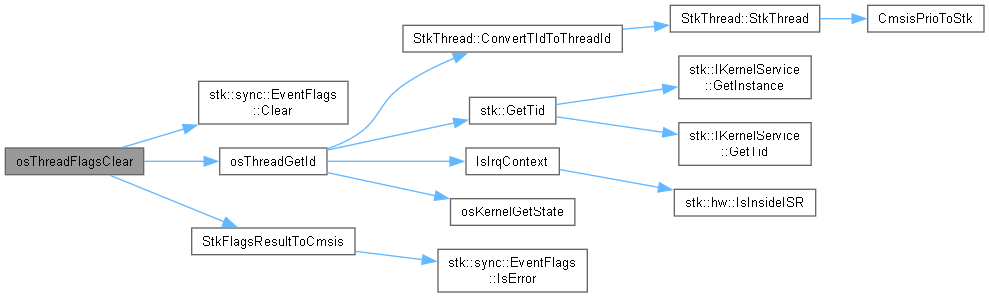

uint32_t	osThreadFlagsClear (uint32_t flags)

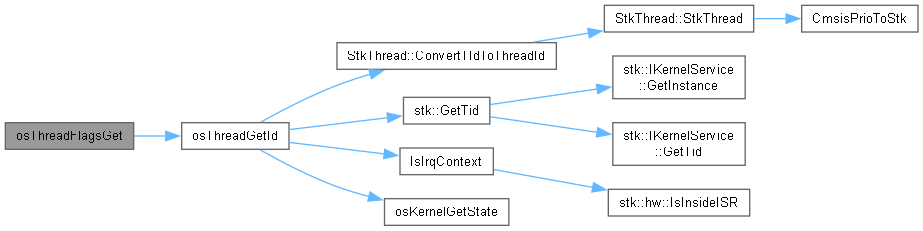

uint32_t	osThreadFlagsGet (void)
uint32_t	osThreadFlagsWait (uint32_t flags, uint32_t options, uint32_t timeout)
osStatus_t	osDelay (uint32_t ticks)
osStatus_t	osDelayUntil (uint32_t ticks)
osTimerId_t	osTimerNew (osTimerFunc_t func, osTimerType_t type, void *argument, const osTimerAttr_t *attr)
const char *	osTimerGetName (osTimerId_t timer_id)
osStatus_t	osTimerStart (osTimerId_t timer_id, uint32_t ticks)
osStatus_t	osTimerStop (osTimerId_t timer_id)
uint32_t	osTimerIsRunning (osTimerId_t timer_id)
osStatus_t	osTimerDelete (osTimerId_t timer_id)
osEventFlagsId_t	osEventFlagsNew (const osEventFlagsAttr_t *attr)
const char *	osEventFlagsGetName (osEventFlagsId_t ef_id)
uint32_t	osEventFlagsSet (osEventFlagsId_t ef_id, uint32_t flags)
uint32_t	osEventFlagsClear (osEventFlagsId_t ef_id, uint32_t flags)
uint32_t	osEventFlagsGet (osEventFlagsId_t ef_id)
uint32_t	osEventFlagsWait (osEventFlagsId_t ef_id, uint32_t flags, uint32_t options, uint32_t timeout)
osStatus_t	osEventFlagsDelete (osEventFlagsId_t ef_id)
osMutexId_t	osMutexNew (const osMutexAttr_t *attr)
const char *	osMutexGetName (osMutexId_t mutex_id)

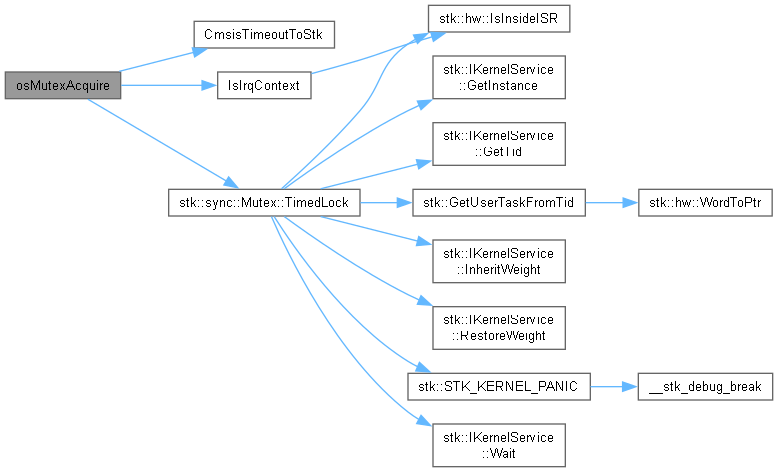

osStatus_t	osMutexAcquire (osMutexId_t mutex_id, uint32_t timeout)
osStatus_t	osMutexRelease (osMutexId_t mutex_id)
osThreadId_t	osMutexGetOwner (osMutexId_t mutex_id)
osStatus_t	osMutexDelete (osMutexId_t mutex_id)
osSemaphoreId_t	osSemaphoreNew (uint32_t max_count, uint32_t initial_count, const osSemaphoreAttr_t *attr)
const char *	osSemaphoreGetName (osSemaphoreId_t semaphore_id)
osStatus_t	osSemaphoreAcquire (osSemaphoreId_t semaphore_id, uint32_t timeout)
osStatus_t	osSemaphoreRelease (osSemaphoreId_t semaphore_id)
uint32_t	osSemaphoreGetCount (osSemaphoreId_t semaphore_id)
osStatus_t	osSemaphoreDelete (osSemaphoreId_t semaphore_id)
osMemoryPoolId_t	osMemoryPoolNew (uint32_t block_count, uint32_t block_size, const osMemoryPoolAttr_t *attr)
const char *	osMemoryPoolGetName (osMemoryPoolId_t mp_id)
void *	osMemoryPoolAlloc (osMemoryPoolId_t mp_id, uint32_t timeout)
osStatus_t	osMemoryPoolFree (osMemoryPoolId_t mp_id, void *block)
uint32_t	osMemoryPoolGetCapacity (osMemoryPoolId_t mp_id)
uint32_t	osMemoryPoolGetBlockSize (osMemoryPoolId_t mp_id)
uint32_t	osMemoryPoolGetCount (osMemoryPoolId_t mp_id)
uint32_t	osMemoryPoolGetSpace (osMemoryPoolId_t mp_id)
osStatus_t	osMemoryPoolDelete (osMemoryPoolId_t mp_id)
osMessageQueueId_t	osMessageQueueNew (uint32_t msg_count, uint32_t msg_size, const osMessageQueueAttr_t *attr)
const char *	osMessageQueueGetName (osMessageQueueId_t mq_id)
osStatus_t	osMessageQueuePut (osMessageQueueId_t mq_id, const void *msg_ptr, uint8_t msg_prio, uint32_t timeout)
osStatus_t	osMessageQueueGet (osMessageQueueId_t mq_id, void *msg_ptr, uint8_t *msg_prio, uint32_t timeout)
uint32_t	osMessageQueueGetCapacity (osMessageQueueId_t mq_id)
uint32_t	osMessageQueueGetMsgSize (osMessageQueueId_t mq_id)
uint32_t	osMessageQueueGetCount (osMessageQueueId_t mq_id)
uint32_t	osMessageQueueGetSpace (osMessageQueueId_t mq_id)
osStatus_t	osMessageQueueReset (osMessageQueueId_t mq_id)
osStatus_t	osMessageQueueDelete (osMessageQueueId_t mq_id)
uint32_t	osWatchdogAlarm_Handler (osThreadId_t thread_id)
void	osZoneSetup_Callback (uint32_t zone)
void	osFaultResume (void)
	Resume normal operation when exiting exception faults.

Detailed Description

CMSIS RTOS2 interface for C++ API of SuperTinyKernel RTOS.

Maps the CMSIS RTOS2 C API (cmsis_os2.h) onto the STK C++ API.

Supported:

• Kernel management (osKernelInitialize / Start / GetState / GetInfo / GetTickCount / GetTickFreq / GetSysTimerCount / GetSysTimerFreq / Lock / Unlock / RestoreLock)
• Thread management (osThreadNew / Delete / Yield / Delay / osDelay / GetId / GetName / GetState / GetPriority / SetPriority / GetStackSize / GetStackSpace / GetCount / Terminate / Suspend / Resume, Join, Detach)
• Thread flags (osThreadFlagsSet / Clear / Get / Wait)
• Event flags (osEventFlagsNew / Delete / Set / Clear / Get / Wait)
• Mutex (osMutexNew / Delete / Acquire / Release / GetOwner)
• Semaphore (osSemaphoreNew / Delete / Acquire / Release / GetCount)
• Timer (osTimerNew / Delete / Start / Stop / IsRunning)
• Message Queue (osMessageQueueNew / Delete / Put / Get / GetCapacity / GetMsgSize / GetCount / GetSpace / Reset)
• Memory Pool (osMemoryPoolNew / Delete / Alloc / Free / GetCapacity / GetBlockSize / GetCount / GetSpace / GetName)

Design notes:

• All objects are heap-allocated with operator new/delete. For a fully static deployment, replace with a static object-pool allocator.
• The wrapper owns one global Kernel instance (g_StkKernel). Call osKernelInitialize() before any other API, then osKernelStart().
• The kernel is configured with KERNEL_DYNAMIC | KERNEL_SYNC and SwitchStrategyFP32 (32 fixed-priority levels). osThread priority values (osPriorityIdle=1 .. osPriorityISR=56) are linearly mapped to STK priority levels 0..31.
• CMSIS osWaitForever (0xFFFFFFFF) is translated to STK WAIT_INFINITE.
• Timeout values in CMSIS are in ticks; STK Sleep/Delay also take ticks, so no conversion is required.
• Thread flags and event flags are backed by stk::sync::EventFlags, STK's native 32-bit multi-flag synchronization primitive.
• Message queues are backed by stk::sync::MessageQueue, STK's native fixed-capacity, fixed-message-size ring-buffer with integrated blocking semantics (Put/Get with configurable timeouts, ISR-safe TryPut/TryGet).

Limitations / deviations from the specification:

• Priority inheritance (osMutexPrioInherit): ignored, always supported.
• Robust mutex (osMutexRobust): will assert as unsafe code.
• Recursive mutex (osMutexRecursive): ignored, always recursive by default.

Macro Definition Documentation

osErrorId

#define osErrorId   0xFFFFFFFFU

osError (-1).

Definition at line 294 of file cmsis_os2.h.

osFlagsError

#define osFlagsError   0x80000000U

Error indicator.

Definition at line 254 of file cmsis_os2.h.

Referenced by osEventFlagsClear(), osEventFlagsSet(), osEventFlagsWait(), and osThreadFlagsSet().

osFlagsErrorISR

#define osFlagsErrorISR   0xFFFFFFFAU

osErrorISR (-6).

Definition at line 259 of file cmsis_os2.h.

Referenced by osThreadFlagsWait(), and StkFlagsResultToCmsis().

osFlagsErrorParameter

#define osFlagsErrorParameter   0xFFFFFFFCU

osErrorParameter (-4).

Definition at line 258 of file cmsis_os2.h.

Referenced by osEventFlagsClear(), osEventFlagsSet(), osEventFlagsWait(), osThreadFlagsSet(), and StkFlagsResultToCmsis().

osFlagsErrorResource

#define osFlagsErrorResource   0xFFFFFFFDU

osErrorResource (-3).

Definition at line 257 of file cmsis_os2.h.

osFlagsErrorSafetyClass

#define osFlagsErrorSafetyClass   0xFFFFFFF9U

osErrorSafetyClass (-7).

Definition at line 260 of file cmsis_os2.h.

osFlagsErrorTimeout

#define osFlagsErrorTimeout   0xFFFFFFFEU

osErrorTimeout (-2).

Definition at line 256 of file cmsis_os2.h.

Referenced by StkFlagsResultToCmsis().

osFlagsErrorUnknown

#define osFlagsErrorUnknown   0xFFFFFFFFU

osError (-1).

Definition at line 255 of file cmsis_os2.h.

Referenced by osThreadFlagsClear(), osThreadFlagsWait(), and StkFlagsResultToCmsis().

osFlagsNoClear

#define osFlagsNoClear   0x00000002U

Do not clear flags which have been specified to wait for.

Definition at line 251 of file cmsis_os2.h.

Referenced by CmsisFlagsOptionsToStk().

osFlagsWaitAll

#define osFlagsWaitAll   0x00000001U

Wait for all flags.

Definition at line 250 of file cmsis_os2.h.

Referenced by CmsisFlagsOptionsToStk().

osFlagsWaitAny

#define osFlagsWaitAny   0x00000000U

Wait for any flag (default).

Definition at line 249 of file cmsis_os2.h.

osMutexPrioInherit

#define osMutexPrioInherit   0x00000002U

Priority inherit protocol.

Definition at line 279 of file cmsis_os2.h.

osMutexRecursive

#define osMutexRecursive   0x00000001U

Recursive mutex.

Definition at line 278 of file cmsis_os2.h.

osMutexRobust

#define osMutexRobust   0x00000008U

Robust mutex.

Definition at line 280 of file cmsis_os2.h.

Referenced by osMutexNew().

osSafetyClass

#define osSafetyClass

(

n

)

Value:

((((n) << osSafetyClass_Pos) & osSafetyClass_Msk) | \
osSafetyClass_Valid)

Safety class.

Definition at line 286 of file cmsis_os2.h.

#define osSafetyClass(n)        ((((n) << osSafetyClass_Pos) & osSafetyClass_Msk) | \
                                 osSafetyClass_Valid)

osSafetyClass_Msk

#define osSafetyClass_Msk   (0x0FUL << osSafetyClass_Pos)

Safety class mask.

Definition at line 284 of file cmsis_os2.h.

osSafetyClass_Pos

#define osSafetyClass_Pos   16U

Safety class position.

Definition at line 283 of file cmsis_os2.h.

osSafetyClass_Valid

#define osSafetyClass_Valid   (0x10UL << osSafetyClass_Pos)

Safety class valid flag.

Definition at line 285 of file cmsis_os2.h.

osSafetyWithLowerClass

#define osSafetyWithLowerClass   0x00000002U

Objects with lower safety class.

Definition at line 291 of file cmsis_os2.h.

osSafetyWithSameClass

#define osSafetyWithSameClass   0x00000001U

Objects with same safety class.

Definition at line 290 of file cmsis_os2.h.

osThreadDetached

#define osThreadDetached   0x00000000U

Thread created in detached mode (default).

Definition at line 263 of file cmsis_os2.h.

osThreadJoinable

#define osThreadJoinable   0x00000001U

Thread created in joinable mode.

Definition at line 264 of file cmsis_os2.h.

Referenced by osThreadNew().

osThreadPrivileged

#define osThreadPrivileged   0x00000004U

Thread runs in privileged mode.

Definition at line 266 of file cmsis_os2.h.

osThreadProcessor

#define osThreadProcessor

(

n

)

Value:

(1UL << (n))

Thread processor number for SMP systems.

Definition at line 275 of file cmsis_os2.h.

osThreadUnprivileged

#define osThreadUnprivileged   0x00000002U

Thread runs in unprivileged mode.

Definition at line 265 of file cmsis_os2.h.

osThreadZone

#define osThreadZone

(

n

)

Value:

((((n) << osThreadZone_Pos) & osThreadZone_Msk) | \
osThreadZone_Valid)

MPU zone value in attribute bit field format.

Definition at line 271 of file cmsis_os2.h.

#define osThreadZone(n)         ((((n) << osThreadZone_Pos) & osThreadZone_Msk) | \
                                 osThreadZone_Valid)

osThreadZone_Msk

#define osThreadZone_Msk   (0x3FUL << osThreadZone_Pos)

MPU protected zone mask.

Definition at line 269 of file cmsis_os2.h.

osThreadZone_Pos

#define osThreadZone_Pos   8U

MPU protected zone position.

Definition at line 268 of file cmsis_os2.h.

osThreadZone_Valid

#define osThreadZone_Valid   (0x80UL << osThreadZone_Pos)

MPU protected zone valid flag.

Definition at line 270 of file cmsis_os2.h.

osWaitForever

#define osWaitForever   0xFFFFFFFFU

Wait forever timeout value.

Definition at line 246 of file cmsis_os2.h.

TZ_MODULEID_T

#define TZ_MODULEID_T

Definition at line 333 of file cmsis_os2.h.

Typedef Documentation

osEventFlagsId_t

typedef void* osEventFlagsId_t

Event Flags ID identifies the event flags.

Definition at line 317 of file cmsis_os2.h.

osMemoryPoolId_t

typedef void* osMemoryPoolId_t

Memory Pool ID identifies the memory pool.

Definition at line 326 of file cmsis_os2.h.

osMessageQueueId_t

typedef void* osMessageQueueId_t

Message Queue ID identifies the message queue.

Definition at line 329 of file cmsis_os2.h.

osMutexId_t

typedef void* osMutexId_t

Mutex ID identifies the mutex.

Definition at line 320 of file cmsis_os2.h.

osSemaphoreId_t

typedef void* osSemaphoreId_t

Semaphore ID identifies the semaphore.

Definition at line 323 of file cmsis_os2.h.

osThreadFunc_t

typedef void(* osThreadFunc_t) (void *argument)

Entry point of a thread.

Definition at line 234 of file cmsis_os2.h.

osThreadId_t

typedef void* osThreadId_t

Thread ID identifies the thread.

Definition at line 311 of file cmsis_os2.h.

osTimerFunc_t

typedef void(* osTimerFunc_t) (void *argument)

Timer callback function.

Definition at line 237 of file cmsis_os2.h.

osTimerId_t

typedef void* osTimerId_t

Timer ID identifies the timer.

Definition at line 314 of file cmsis_os2.h.

TZ_ModuleId_t

typedef uint32_t TZ_ModuleId_t

Data type that identifies secure software modules called by a process.

Definition at line 335 of file cmsis_os2.h.

Enumeration Type Documentation

osKernelState_t

enum osKernelState_t

Kernel state.

Enumerator
osKernelInactive	Inactive.
osKernelReady	Ready.
osKernelRunning	Running.
osKernelLocked	Locked.
osKernelSuspended	Suspended.
osKernelError	Error.
osKernelReserved	Prevents enum down-size compiler optimization.

Definition at line 155 of file cmsis_os2.h.

             {
  osKernelInactive        =  0,
  osKernelReady           =  1,
  osKernelRunning         =  2,
  osKernelLocked          =  3,
  osKernelSuspended       =  4,
  osKernelError           = -1,
  osKernelReserved        = 0x7FFFFFFF
} osKernelState_t;

osPriority_t

enum osPriority_t

Priority values.

Enumerator
osPriorityNone	No priority (not initialized).
osPriorityIdle	Reserved for Idle thread.
osPriorityLow	Priority: low.
osPriorityLow1	Priority: low + 1.
osPriorityLow2	Priority: low + 2.
osPriorityLow3	Priority: low + 3.
osPriorityLow4	Priority: low + 4.
osPriorityLow5	Priority: low + 5.
osPriorityLow6	Priority: low + 6.
osPriorityLow7	Priority: low + 7.
osPriorityBelowNormal	Priority: below normal.
osPriorityBelowNormal1	Priority: below normal + 1.
osPriorityBelowNormal2	Priority: below normal + 2.
osPriorityBelowNormal3	Priority: below normal + 3.
osPriorityBelowNormal4	Priority: below normal + 4.
osPriorityBelowNormal5	Priority: below normal + 5.
osPriorityBelowNormal6	Priority: below normal + 6.
osPriorityBelowNormal7	Priority: below normal + 7.
osPriorityNormal	Priority: normal.
osPriorityNormal1	Priority: normal + 1.
osPriorityNormal2	Priority: normal + 2.
osPriorityNormal3	Priority: normal + 3.
osPriorityNormal4	Priority: normal + 4.
osPriorityNormal5	Priority: normal + 5.
osPriorityNormal6	Priority: normal + 6.
osPriorityNormal7	Priority: normal + 7.
osPriorityAboveNormal	Priority: above normal.
osPriorityAboveNormal1	Priority: above normal + 1.
osPriorityAboveNormal2	Priority: above normal + 2.
osPriorityAboveNormal3	Priority: above normal + 3.
osPriorityAboveNormal4	Priority: above normal + 4.
osPriorityAboveNormal5	Priority: above normal + 5.
osPriorityAboveNormal6	Priority: above normal + 6.
osPriorityAboveNormal7	Priority: above normal + 7.
osPriorityHigh	Priority: high.
osPriorityHigh1	Priority: high + 1.
osPriorityHigh2	Priority: high + 2.
osPriorityHigh3	Priority: high + 3.
osPriorityHigh4	Priority: high + 4.
osPriorityHigh5	Priority: high + 5.
osPriorityHigh6	Priority: high + 6.
osPriorityHigh7	Priority: high + 7.
osPriorityRealtime	Priority: realtime.
osPriorityRealtime1	Priority: realtime + 1.
osPriorityRealtime2	Priority: realtime + 2.
osPriorityRealtime3	Priority: realtime + 3.
osPriorityRealtime4	Priority: realtime + 4.
osPriorityRealtime5	Priority: realtime + 5.
osPriorityRealtime6	Priority: realtime + 6.
osPriorityRealtime7	Priority: realtime + 7.
osPriorityISR	Reserved for ISR deferred thread.
osPriorityError	System cannot determine priority or illegal priority.
osPriorityReserved	Prevents enum down-size compiler optimization.

Definition at line 177 of file cmsis_os2.h.

             {
  osPriorityNone          =  0,
  osPriorityIdle          =  1,
  osPriorityLow           =  8,
  osPriorityLow1          =  8+1,
  osPriorityLow2          =  8+2,
  osPriorityLow3          =  8+3,
  osPriorityLow4          =  8+4,
  osPriorityLow5          =  8+5,
  osPriorityLow6          =  8+6,
  osPriorityLow7          =  8+7,
  osPriorityBelowNormal   = 16,
  osPriorityBelowNormal1  = 16+1,
  osPriorityBelowNormal2  = 16+2,
  osPriorityBelowNormal3  = 16+3,
  osPriorityBelowNormal4  = 16+4,
  osPriorityBelowNormal5  = 16+5,
  osPriorityBelowNormal6  = 16+6,
  osPriorityBelowNormal7  = 16+7,
  osPriorityNormal        = 24,
  osPriorityNormal1       = 24+1,
  osPriorityNormal2       = 24+2,
  osPriorityNormal3       = 24+3,
  osPriorityNormal4       = 24+4,
  osPriorityNormal5       = 24+5,
  osPriorityNormal6       = 24+6,
  osPriorityNormal7       = 24+7,
  osPriorityAboveNormal   = 32,
  osPriorityAboveNormal1  = 32+1,
  osPriorityAboveNormal2  = 32+2,
  osPriorityAboveNormal3  = 32+3,
  osPriorityAboveNormal4  = 32+4,
  osPriorityAboveNormal5  = 32+5,
  osPriorityAboveNormal6  = 32+6,
  osPriorityAboveNormal7  = 32+7,
  osPriorityHigh          = 40,
  osPriorityHigh1         = 40+1,
  osPriorityHigh2         = 40+2,
  osPriorityHigh3         = 40+3,
  osPriorityHigh4         = 40+4,
  osPriorityHigh5         = 40+5,
  osPriorityHigh6         = 40+6,
  osPriorityHigh7         = 40+7,
  osPriorityRealtime      = 48,
  osPriorityRealtime1     = 48+1,
  osPriorityRealtime2     = 48+2,
  osPriorityRealtime3     = 48+3,
  osPriorityRealtime4     = 48+4,
  osPriorityRealtime5     = 48+5,
  osPriorityRealtime6     = 48+6,
  osPriorityRealtime7     = 48+7,
  osPriorityISR           = 56,
  osPriorityError         = -1,
  osPriorityReserved      = 0x7FFFFFFF
} osPriority_t;

osStatus_t

enum osStatus_t

Status code values returned by CMSIS-RTOS functions.

Enumerator
osOK	Operation completed successfully.
osError	Unspecified RTOS error: run-time error but no other error message fits.
osErrorTimeout	Operation not completed within the timeout period.
osErrorResource	Resource not available.
osErrorParameter	Parameter error.
osErrorNoMemory	System is out of memory: it was impossible to allocate or reserve memory for the operation.
osErrorISR	Not allowed in ISR context: the function cannot be called from interrupt service routines.
osErrorSafetyClass	Operation denied because of safety class violation.
osStatusReserved	Prevents enum down-size compiler optimization.

Definition at line 297 of file cmsis_os2.h.

             {
  osOK                    =  0,
  osError                 = -1,
  osErrorTimeout          = -2,
  osErrorResource         = -3,
  osErrorParameter        = -4,
  osErrorNoMemory         = -5,
  osErrorISR              = -6,
  osErrorSafetyClass      = -7,
  osStatusReserved        = 0x7FFFFFFF
} osStatus_t;

osThreadState_t

enum osThreadState_t

Thread state.

Enumerator
osThreadInactive	Inactive.
osThreadReady	Ready.
osThreadRunning	Running.
osThreadBlocked	Blocked.
osThreadTerminated	Terminated.
osThreadError	Error.
osThreadReserved	Prevents enum down-size compiler optimization.

Definition at line 166 of file cmsis_os2.h.

             {
  osThreadInactive        =  0,
  osThreadReady           =  1,
  osThreadRunning         =  2,
  osThreadBlocked         =  3,
  osThreadTerminated      =  4,
  osThreadError           = -1,
  osThreadReserved        = 0x7FFFFFFF
} osThreadState_t;

osTimerType_t

enum osTimerType_t

Timer type.

Enumerator
osTimerOnce	One-shot timer.
osTimerPeriodic	Repeating timer.

Definition at line 240 of file cmsis_os2.h.

             {
  osTimerOnce             = 0,
  osTimerPeriodic         = 1
} osTimerType_t;

Function Documentation

osDelay()

osStatus_t osDelay

(

uint32_t

ticks

)

Wait for Timeout (Time Delay).

Parameters

[in]

ticks

time ticks value

Returns

status code that indicates the execution status of the function.

Definition at line 1392 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (osKernelGetState() == osKernelInactive)
    {
        result = osError;
    }
    else
    {
        stk::Sleep(CmsisTimeoutToStk(ticks));
        result = osOK;
    }

    return result;
}

References CmsisTimeoutToStk(), IsIrqContext(), osError, osErrorISR, osKernelGetState(), osKernelInactive, osOK, and stk::Sleep().

Here is the call graph for this function:

osDelayUntil()

osStatus_t osDelayUntil

(

uint32_t

ticks

)

Wait until specified time.

Parameters

[in]

ticks

absolute time in ticks

Returns

status code that indicates the execution status of the function.

Definition at line 1413 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (osKernelGetState() == osKernelInactive)
    {
        result = osError;
    }
    else
    {
        result = (stk::SleepUntil(static_cast<stk::Ticks>(ticks)) ? osOK : osError);
    }

    return result;
}

References IsIrqContext(), osError, osErrorISR, osKernelGetState(), osKernelInactive, osOK, and stk::SleepUntil().

Here is the call graph for this function:

osEventFlagsClear()

uint32_t osEventFlagsClear	(	osEventFlagsId_t	ef_id,
		uint32_t	flags )

Clear the specified Event Flags.

Parameters

[in]	ef_id	event flags ID obtained by osEventFlagsNew.
[in]	flags	specifies the flags that shall be cleared.

Returns

event flags before clearing or error code if highest bit set.

Definition at line 1646 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if ((ef_id == nullptr) || ((flags & osFlagsError) != 0U))
    {
        result = osFlagsErrorParameter;
    }
    else
    {
        result = StkFlagsResultToCmsis(static_cast<StkEventFlags *>(ef_id)->m_ef.Clear(flags));
    }

    return result;
}

References osFlagsError, osFlagsErrorParameter, and StkFlagsResultToCmsis().

Here is the call graph for this function:

osEventFlagsDelete()

osStatus_t osEventFlagsDelete

(

osEventFlagsId_t

ef_id

)

Delete an Event Flags object.

Parameters

[in]

ef_id

event flags ID obtained by osEventFlagsNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1696 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (ef_id == nullptr)
    {
        result = osErrorParameter;
    }
    else
    {
        ObjDestroy(static_cast<StkEventFlags *>(ef_id));
        result = osOK;
    }

    return result;
}

References IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osEventFlagsGet()

uint32_t osEventFlagsGet

(

osEventFlagsId_t

ef_id

)

Get the current Event Flags.

Parameters

[in]

ef_id

event flags ID obtained by osEventFlagsNew.

Returns

current event flags.

Definition at line 1662 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (ef_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<StkEventFlags *>(ef_id)->m_ef.Get();
    }

    return result;
}

osEventFlagsGetName()

const char * osEventFlagsGetName

(

osEventFlagsId_t

ef_id

)

Get name of an Event Flags object.

Parameters

[in]

ef_id

event flags ID obtained by osEventFlagsNew.

Returns

name as null-terminated string.

Definition at line 1614 of file cmsis_os2_stk.cpp.

{
    const char *result;

    if (ef_id == nullptr)
    {
        result = nullptr;
    }
    else
    {
        result = static_cast<StkEventFlags *>(ef_id)->m_ef.GetTraceName();
    }

    return result;
}

osEventFlagsNew()

osEventFlagsId_t osEventFlagsNew

(

const osEventFlagsAttr_t *

attr

)

Create and Initialize an Event Flags object.

Parameters

[in]

attr

event flags attributes; NULL: default values.

Returns

event flags ID for reference by other functions or NULL in case of error.

Definition at line 1593 of file cmsis_os2_stk.cpp.

{
    osEventFlagsId_t result;

    if (IsIrqContext())
    {
        result = nullptr;
    }
    else
    {
        const char *const name   = ((attr != nullptr) ? attr->name    : nullptr);
        void       *const cb_mem = ((attr != nullptr) ? attr->cb_mem  : nullptr);
        const uint32_t    cb_sz  = ((attr != nullptr) ? attr->cb_size : 0U);

        StkEventFlags *const ef = PlacementNewOrHeap<StkEventFlags>(cb_mem, cb_sz, name);
        result = static_cast<osEventFlagsId_t>(ef);
    }

    return result;
}

References osEventFlagsAttr_t::cb_mem, osEventFlagsAttr_t::cb_size, IsIrqContext(), osEventFlagsAttr_t::name, and PlacementNewOrHeap().

Here is the call graph for this function:

osEventFlagsSet()

uint32_t osEventFlagsSet	(	osEventFlagsId_t	ef_id,
		uint32_t	flags )

Set the specified Event Flags.

Parameters

[in]	ef_id	event flags ID obtained by osEventFlagsNew.
[in]	flags	specifies the flags that shall be set.

Returns

event flags after setting or error code if highest bit set.

Definition at line 1630 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if ((ef_id == nullptr) || ((flags & osFlagsError) != 0U))
    {
        result = osFlagsErrorParameter;
    }
    else
    {
        result = StkFlagsResultToCmsis(static_cast<StkEventFlags *>(ef_id)->m_ef.Set(flags));
    }

    return result;
}

References osFlagsError, osFlagsErrorParameter, and StkFlagsResultToCmsis().

Here is the call graph for this function:

osEventFlagsWait()

uint32_t osEventFlagsWait	(	osEventFlagsId_t	ef_id,
		uint32_t	flags,
		uint32_t	options,
		uint32_t	timeout )

Wait for one or more Event Flags to become signaled.

Parameters

[in]	ef_id	event flags ID obtained by osEventFlagsNew.
[in]	flags	specifies the flags to wait for.
[in]	options	specifies flags options (osFlagsXxxx).
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

event flags before clearing or error code if highest bit set.

Definition at line 1678 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if ((ef_id == nullptr) || ((flags & osFlagsError) != 0U))
    {
        result = osFlagsErrorParameter;
    }
    else
    {
        result = StkFlagsResultToCmsis(static_cast<StkEventFlags *>(ef_id)->m_ef.Wait(flags,
            CmsisFlagsOptionsToStk(options), CmsisTimeoutToStk(timeout)));
    }

    return result;
}

References CmsisFlagsOptionsToStk(), CmsisTimeoutToStk(), osFlagsError, osFlagsErrorParameter, and StkFlagsResultToCmsis().

Here is the call graph for this function:

osFaultResume()

void osFaultResume

(

void

)

Resume normal operation when exiting exception faults.

osKernelDestroyClass()

osStatus_t osKernelDestroyClass	(	uint32_t	safety_class,
		uint32_t	mode )

Destroy objects for specified safety classes.

Parameters

[in]	safety_class	safety class.
[in]	mode	safety mode.

Returns

status code that indicates the execution status of the function.

osKernelGetInfo()

osStatus_t osKernelGetInfo	(	osVersion_t *	version,
		char *	id_buf,
		uint32_t	id_size )

Get RTOS Kernel Information.

Parameters

[out]	version	pointer to buffer for retrieving version information.
[out]	id_buf	pointer to buffer for retrieving kernel identification string.
[in]	id_size	size of buffer for kernel identification string.

Returns

status code that indicates the execution status of the function.

Definition at line 564 of file cmsis_os2_stk.cpp.

{
    if (version != nullptr)
    {
        version->api    = STK_WRAPPER_API_VERSION;
        version->kernel = STK_WRAPPER_KERNEL_VERSION;
    }

    if ((id_buf != nullptr) && (id_size > 0U))
    {
        const char *const id = STK_WRAPPER_KERNEL_ID;
        size_t copy_len      = id_size - 1U;
        const size_t id_len  = CmsisStrlen(id);
        if (copy_len > id_len)
        {
            copy_len = id_len;
        }

        STK_MEMCPY(id_buf, id, copy_len);
        id_buf[copy_len] = '\0';
    }

    return osOK;
}

References osVersion_t::api, CmsisStrlen(), osVersion_t::kernel, osOK, STK_MEMCPY(), STK_WRAPPER_API_VERSION, STK_WRAPPER_KERNEL_ID, and STK_WRAPPER_KERNEL_VERSION.

Here is the call graph for this function:

osKernelGetState()

osKernelState_t osKernelGetState

(

void

)

Get the current RTOS Kernel state.

Returns

current RTOS Kernel state.

Definition at line 589 of file cmsis_os2_stk.cpp.

{
    osKernelState_t state;

    if (g_StkKernelLocked != 0U)
    {
        state = osKernelLocked;
    }
    else
    {
        switch (g_StkKernel.GetState())
        {
        case stk::IKernel::KSTATE_INACTIVE:
            state = osKernelInactive;
            break;
        case stk::IKernel::KSTATE_READY:
            state = osKernelReady;
            break;
        case stk::IKernel::KSTATE_RUNNING:
            state = osKernelRunning;
            break;
        case stk::IKernel::KSTATE_SUSPENDED:
            state = osKernelSuspended;
            break;
        default:
            state = osKernelError;
            break;
        }
    }

    return state;
}

References g_StkKernel, g_StkKernelLocked, stk::IKernel::KSTATE_INACTIVE, stk::IKernel::KSTATE_READY, stk::IKernel::KSTATE_RUNNING, stk::IKernel::KSTATE_SUSPENDED, osKernelError, osKernelInactive, osKernelLocked, osKernelReady, osKernelRunning, and osKernelSuspended.

Referenced by osDelay(), osDelayUntil(), osKernelGetTickCount(), osKernelGetTickFreq(), osKernelInitialize(), osKernelResume(), osKernelStart(), osKernelSuspend(), osThreadEnumerate(), osThreadGetCount(), osThreadGetId(), osThreadNew(), osThreadResume(), osThreadSuspend(), osThreadTerminate(), osThreadYield(), and osTimerNew().

Here is the caller graph for this function:

osKernelGetSysTimerCount()

uint32_t osKernelGetSysTimerCount

(

void

)

Get the RTOS kernel system timer count.

Returns

RTOS kernel current system timer count as 32-bit value.

Definition at line 787 of file cmsis_os2_stk.cpp.

{
    return static_cast<uint32_t>(stk::GetSysTimerCount());
}

References stk::GetSysTimerCount().

Here is the call graph for this function:

osKernelGetSysTimerCount64()

uint64_t osKernelGetSysTimerCount64

(

void

)

Get the RTOS kernel system timer count.

Returns

RTOS kernel current system timer count as 64-bit value.

Definition at line 792 of file cmsis_os2_stk.cpp.

{
    return stk::GetSysTimerCount();
}

References stk::GetSysTimerCount().

Here is the call graph for this function:

osKernelGetSysTimerFreq()

uint32_t osKernelGetSysTimerFreq

(

void

)

Get the RTOS kernel system timer frequency.

Returns

frequency of the system timer in hertz, i.e. timer ticks per second.

Definition at line 797 of file cmsis_os2_stk.cpp.

{
    return stk::GetSysTimerFrequency();
}

References stk::GetSysTimerFrequency().

Here is the call graph for this function:

osKernelGetTickCount()

uint32_t osKernelGetTickCount

(

void

)

Get the RTOS kernel tick count.

Returns

RTOS kernel current tick count.

Definition at line 747 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (osKernelGetState() == osKernelInactive)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<uint32_t>(stk::GetTicks());
    }

    return result;
}

References stk::GetTicks(), osKernelGetState(), and osKernelInactive.

Here is the call graph for this function:

osKernelGetTickFreq()

uint32_t osKernelGetTickFreq

(

void

)

Get the RTOS kernel tick frequency.

Returns

frequency of the kernel tick in hertz, i.e. kernel ticks per second.

Definition at line 763 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (osKernelGetState() == osKernelInactive)
    {
        result = 1000U; // default 1 kHz
    }
    else
    {
        const int32_t res_us = stk::GetTickResolution(); // us per tick
        if (res_us <= 0)
        {
            result = 1000U;
        }
        else
        {
            result = (1000000U / static_cast<uint32_t>(res_us));
        }
    }

    return result;
}

References stk::GetTickResolution(), osKernelGetState(), and osKernelInactive.

Here is the call graph for this function:

osKernelInitialize()

osStatus_t osKernelInitialize

(

void

)

Initialize the RTOS Kernel.

Returns

status code that indicates the execution status of the function.

Definition at line 543 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (osKernelGetState() != osKernelInactive)
    {
        result = osError;
    }
    else
    {
        g_StkKernel.Initialize(); // default 1 ms tick resolution
        result = osOK;
    }

    return result;
}

References g_StkKernel, IsIrqContext(), osError, osErrorISR, osKernelGetState(), osKernelInactive, and osOK.

Here is the call graph for this function:

osKernelLock()

int32_t osKernelLock

(

void

)

Lock the RTOS Kernel scheduler.

Returns

previous lock state (1 - locked, 0 - not locked, error code if negative).

Definition at line 645 of file cmsis_os2_stk.cpp.

{
    int32_t result;

    if (IsIrqContext())
    {
        result = static_cast<int32_t>(osErrorISR);
    }
    else
    {
        stk::hw::CriticalSection::Enter();
        ++g_StkKernelLocked;
        result = 0;
    }

    return result;
}

References stk::hw::CriticalSection::Enter(), g_StkKernelLocked, IsIrqContext(), and osErrorISR.

Here is the call graph for this function:

osKernelProtect()

osStatus_t osKernelProtect

(

uint32_t

safety_class

)

Protect the RTOS Kernel scheduler access.

Parameters

[in]

safety_class

safety class.

Returns

status code that indicates the execution status of the function.

osKernelRestoreLock()

int32_t osKernelRestoreLock

(

int32_t

lock

)

Restore the RTOS Kernel scheduler lock state.

Parameters

[in]

lock

lock state obtained by osKernelLock or osKernelUnlock.

Returns

new lock state (1 - locked, 0 - not locked, error code if negative).

Definition at line 685 of file cmsis_os2_stk.cpp.

{
    int32_t result;

    if (IsIrqContext())
    {
        result = static_cast<int32_t>(osErrorISR);
    }
    else if (lock == 1)
    {
        stk::hw::CriticalSection::Enter();
        ++g_StkKernelLocked;
        result = lock;
    }
    else if (g_StkKernelLocked == 0U)
    {
        result = static_cast<int32_t>(osErrorResource);
    }
    else
    {
        --g_StkKernelLocked;
        stk::hw::CriticalSection::Exit();
        result = lock;
    }

    return result;
}

References stk::hw::CriticalSection::Enter(), stk::hw::CriticalSection::Exit(), g_StkKernelLocked, IsIrqContext(), osErrorISR, and osErrorResource.

Here is the call graph for this function:

osKernelResume()

void osKernelResume

(

uint32_t

sleep_ticks

)

Resume the RTOS Kernel scheduler.

Parameters

[in]

sleep_ticks

time in ticks for how long the system was in sleep or power-down mode.

Definition at line 734 of file cmsis_os2_stk.cpp.

{
#if STK_TICKLESS_IDLE
    if (osKernelGetState() != osKernelInactive)
    {
        stk::IKernelService::GetInstance()->Resume(sleep_ticks);
    }
#else
    // Not supported in non-tickless kernel.
    STK_UNUSED(sleep_ticks);
#endif
}

References stk::IKernelService::GetInstance(), osKernelGetState(), osKernelInactive, stk::IKernelService::Resume(), and STK_UNUSED.

Here is the call graph for this function:

osKernelStart()

osStatus_t osKernelStart

(

void

)

Start the RTOS Kernel scheduler.

Returns

status code that indicates the execution status of the function.

Definition at line 622 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (osKernelGetState() != osKernelReady)
    {
        result = osError;
    }
    else
    {
        // Start() does not return for KERNEL_STATIC;
        // for KERNEL_DYNAMIC it returns when all tasks exit.
        g_StkKernel.Start();
        result = osOK;
    }

    return result;
}

References g_StkKernel, IsIrqContext(), osError, osErrorISR, osKernelGetState(), osKernelReady, and osOK.

Here is the call graph for this function:

osKernelSuspend()

uint32_t osKernelSuspend

(

void

)

Suspend the RTOS Kernel scheduler.

Returns

time in ticks, for how long the system can sleep or power-down.

Definition at line 713 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

#if STK_TICKLESS_IDLE
    if (osKernelGetState() == osKernelInactive)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<uint32_t>(stk::IKernelService::GetInstance()->Suspend());
    }
#else
    // Not supported in non-tickless kernel.
    result = 0U;
#endif

    return result;
}

References stk::IKernelService::GetInstance(), osKernelGetState(), osKernelInactive, and stk::IKernelService::Suspend().

Here is the call graph for this function:

osKernelUnlock()

int32_t osKernelUnlock

(

void

)

Unlock the RTOS Kernel scheduler.

Returns

previous lock state (1 - locked, 0 - not locked, error code if negative).

Definition at line 663 of file cmsis_os2_stk.cpp.

{
    int32_t result;

    if (IsIrqContext())
    {
        result = static_cast<int32_t>(osErrorISR);
    }
    else if (g_StkKernelLocked == 0U)
    {
        result = static_cast<int32_t>(osErrorResource);
    }
    else
    {
        --g_StkKernelLocked;
        stk::hw::CriticalSection::Exit();
        result = 0;
    }

    return result;
}

References stk::hw::CriticalSection::Exit(), g_StkKernelLocked, IsIrqContext(), osErrorISR, and osErrorResource.

Here is the call graph for this function:

osMemoryPoolAlloc()

void * osMemoryPoolAlloc	(	osMemoryPoolId_t	mp_id,
		uint32_t	timeout )

Allocate a memory block from a Memory Pool.

Parameters

[in]	mp_id	memory pool ID obtained by osMemoryPoolNew.
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

address of the allocated memory block or NULL in case of no memory is available.

Definition at line 2067 of file cmsis_os2_stk.cpp.

{
    void *result;

    if (mp_id == nullptr)
    {
        result = nullptr;
    }
    // ISR context is only valid with timeout == 0 (NO_WAIT / TryAlloc).
    else if (IsIrqContext() && (timeout != 0U))
    {
        result = nullptr;
    }
    else
    {
        result = static_cast<StkMemPool *>(mp_id)->m_mpool.TimedAlloc(CmsisTimeoutToStk(timeout));
    }

    return result;
}

References CmsisTimeoutToStk(), and IsIrqContext().

Here is the call graph for this function:

osMemoryPoolDelete()

osStatus_t osMemoryPoolDelete

(

osMemoryPoolId_t

mp_id

)

Delete a Memory Pool object.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

status code that indicates the execution status of the function.

Definition at line 2172 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (mp_id == nullptr)
    {
        result = osErrorParameter;
    }
    else
    {
        ObjDestroy(static_cast<StkMemPool *>(mp_id));
        result = osOK;
    }

    return result;
}

References IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osMemoryPoolFree()

osStatus_t osMemoryPoolFree	(	osMemoryPoolId_t	mp_id,
		void *	block )

Return an allocated memory block back to a Memory Pool.

Parameters

[in]	mp_id	memory pool ID obtained by osMemoryPoolNew.
[in]	block	address of the allocated memory block to be returned to the memory pool.

Returns

status code that indicates the execution status of the function.

Definition at line 2088 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if ((mp_id == nullptr) || (block == nullptr))
    {
        result = osErrorParameter;
    }
    else if (!static_cast<StkMemPool *>(mp_id)->m_mpool.Free(block))
    {
        result = osErrorParameter; // ptr not from this pool
    }
    else
    {
        result = osOK;
    }

    return result;
}

References osErrorParameter, and osOK.

osMemoryPoolGetBlockSize()

uint32_t osMemoryPoolGetBlockSize

(

osMemoryPoolId_t

mp_id

)

Get memory block size in a Memory Pool.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

memory block size in bytes.

Definition at line 2124 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (mp_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<uint32_t>(static_cast<StkMemPool *>(mp_id)->m_mpool.GetBlockSize());
    }

    return result;
}

References stk::memory::BlockMemoryPool::GetBlockSize(), and StkMemPool::m_mpool.

Here is the call graph for this function:

osMemoryPoolGetCapacity()

uint32_t osMemoryPoolGetCapacity

(

osMemoryPoolId_t

mp_id

)

Get maximum number of memory blocks in a Memory Pool.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

maximum number of memory blocks.

Definition at line 2108 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (mp_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<StkMemPool *>(mp_id)->m_mpool.GetCapacity();
    }

    return result;
}

osMemoryPoolGetCount()

uint32_t osMemoryPoolGetCount

(

osMemoryPoolId_t

mp_id

)

Get number of memory blocks used in a Memory Pool.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

number of memory blocks used.

Definition at line 2140 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (mp_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<StkMemPool *>(mp_id)->m_mpool.GetUsedCount();
    }

    return result;
}

osMemoryPoolGetName()

const char * osMemoryPoolGetName

(

osMemoryPoolId_t

mp_id

)

Get name of a Memory Pool object.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

name as null-terminated string.

Definition at line 2051 of file cmsis_os2_stk.cpp.

{
    const char *result;

    if (mp_id == nullptr)
    {
        result = nullptr;
    }
    else
    {
        result = static_cast<StkMemPool *>(mp_id)->m_mpool.GetTraceName();
    }

    return result;
}

osMemoryPoolGetSpace()

uint32_t osMemoryPoolGetSpace

(

osMemoryPoolId_t

mp_id

)

Get number of memory blocks available in a Memory Pool.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

number of memory blocks available.

Definition at line 2156 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (mp_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<StkMemPool *>(mp_id)->m_mpool.GetFreeCount();
    }

    return result;
}

osMemoryPoolNew()

osMemoryPoolId_t osMemoryPoolNew	(	uint32_t	block_count,
		uint32_t	block_size,
		const osMemoryPoolAttr_t *	attr )

Create and Initialize a Memory Pool object.

Parameters

[in]	block_count	maximum number of memory blocks in memory pool.
[in]	block_size	memory block size in bytes.
[in]	attr	memory pool attributes; NULL: default values.

Returns

memory pool ID for reference by other functions or NULL in case of error.

Definition at line 2000 of file cmsis_os2_stk.cpp.

{
    osMemoryPoolId_t result;

    // ISR context: forbidden per CMSIS spec.
    // Zero capacity or zero block size are meaningless.
    if (IsIrqContext() || (block_count == 0U) || (block_size == 0U))
    {
        result = nullptr;
    }
    else
    {
        const char *const name   = ((attr != nullptr) ? attr->name    : nullptr);
        void       *const cb_mem = ((attr != nullptr) ? attr->cb_mem  : nullptr);
        const uint32_t    cb_sz  = ((attr != nullptr) ? attr->cb_size : 0U);
        void       *const mp_mem = ((attr != nullptr) ? attr->mp_mem  : nullptr);
        const uint32_t    mp_sz  = ((attr != nullptr) ? attr->mp_size : 0U);

        // Compute the aligned block size and required storage byte count.
        const uint32_t aligned_blk      = stk::memory::BlockMemoryPool::AlignBlockSize(block_size);
        const uint32_t storage_required = (block_count * aligned_blk);

        StkMemPool *pool;

        if ((mp_mem != nullptr) && (mp_sz >= storage_required))
        {
            // Caller-supplied pool storage - BlockMemoryPool external-storage ctor.
            pool = PlacementNewOrHeap<StkMemPool>(cb_mem, cb_sz,
                block_count, block_size, name, static_cast<uint8_t *>(mp_mem));
        }
        else
        {
            // Heap-allocated pool storage - BlockMemoryPool heap ctor.
            pool = PlacementNewOrHeap<StkMemPool>(cb_mem, cb_sz,
                block_count, block_size, name);

            // If the heap ctor failed to allocate storage, clean up and bail.
            if ((pool != nullptr) && !pool->m_mpool.IsStorageValid())
            {
                ObjDestroy(pool);
                pool = nullptr;
            }
        }

        result = static_cast<osMemoryPoolId_t>(pool);
    }

    return result;
}

References stk::memory::BlockMemoryPool::AlignBlockSize(), osMemoryPoolAttr_t::cb_mem, osMemoryPoolAttr_t::cb_size, IsIrqContext(), stk::memory::BlockMemoryPool::IsStorageValid(), StkMemPool::m_mpool, osMemoryPoolAttr_t::mp_mem, osMemoryPoolAttr_t::mp_size, osMemoryPoolAttr_t::name, ObjDestroy(), and PlacementNewOrHeap().

Here is the call graph for this function:

osMessageQueueDelete()

osStatus_t osMessageQueueDelete

(

osMessageQueueId_t

mq_id

)

Delete a Message Queue object.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

status code that indicates the execution status of the function.

Definition at line 2414 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (mq_id == nullptr)
    {
        result = osErrorParameter;
    }
    else
    {
        ObjDestroy(static_cast<StkMessageQueue *>(mq_id));
        result = osOK;
    }

    return result;
}

References IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osMessageQueueGet()

osStatus_t osMessageQueueGet	(	osMessageQueueId_t	mq_id,
		void *	msg_ptr,
		uint8_t *	msg_prio,
		uint32_t	timeout )

Get a Message from a Queue or timeout if Queue is empty.

Parameters

[in]	mq_id	message queue ID obtained by osMessageQueueNew.
[out]	msg_ptr	pointer to buffer for message to get from a queue.
[out]	msg_prio	pointer to buffer for message priority or NULL.
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

status code that indicates the execution status of the function.

Definition at line 2295 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if ((mq_id == nullptr) || (msg_ptr == nullptr))
    {
        result = osErrorParameter;
    }
    else if (IsIrqContext() && (timeout != 0U))
    {
        result = osErrorISR;
    }
    else
    {
        const stk::Timeout stk_timeout = CmsisTimeoutToStk(timeout);

        if (!static_cast<StkMessageQueue *>(mq_id)->m_mq.Get(msg_ptr, stk_timeout))
        {
            result = ((stk_timeout == stk::NO_WAIT) ? osErrorResource : osErrorTimeout);
        }
        else
        {
            if (msg_prio != nullptr)
            {
                *msg_prio = 0U; // STK queues have no priority lanes.
            }
            result = osOK;
        }
    }

    return result;
}

References CmsisTimeoutToStk(), IsIrqContext(), stk::NO_WAIT, osErrorISR, osErrorParameter, osErrorResource, osErrorTimeout, and osOK.

Here is the call graph for this function:

osMessageQueueGetCapacity()

uint32_t osMessageQueueGetCapacity

(

osMessageQueueId_t

mq_id

)

Get maximum number of messages in a Message Queue.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

maximum number of messages.

Definition at line 2329 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (mq_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<uint32_t>(static_cast<StkMessageQueue *>(mq_id)->m_mq.GetCapacity());
    }

    return result;
}

References stk::sync::MessageQueue::GetCapacity(), and StkMessageQueue::m_mq.

Here is the call graph for this function:

osMessageQueueGetCount()

uint32_t osMessageQueueGetCount

(

osMessageQueueId_t

mq_id

)

Get number of queued messages in a Message Queue.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

number of queued messages.

Definition at line 2361 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (mq_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<uint32_t>(static_cast<StkMessageQueue *>(mq_id)->m_mq.GetCount());
    }

    return result;
}

References stk::sync::MessageQueue::GetCount(), and StkMessageQueue::m_mq.

Here is the call graph for this function:

osMessageQueueGetMsgSize()

uint32_t osMessageQueueGetMsgSize

(

osMessageQueueId_t

mq_id

)

Get maximum message size in a Message Queue.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

maximum message size in bytes.

Definition at line 2345 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (mq_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<uint32_t>(static_cast<StkMessageQueue *>(mq_id)->m_mq.GetMsgSize());
    }

    return result;
}

References stk::sync::MessageQueue::GetMsgSize(), and StkMessageQueue::m_mq.

Here is the call graph for this function:

osMessageQueueGetName()

const char * osMessageQueueGetName

(

osMessageQueueId_t

mq_id

)

Get name of a Message Queue object.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

name as null-terminated string.

Definition at line 2249 of file cmsis_os2_stk.cpp.

{
    const char *result;

    if (mq_id == nullptr)
    {
        result = nullptr;
    }
    else
    {
        result = static_cast<StkMessageQueue *>(mq_id)->m_mq.GetTraceName();
    }

    return result;
}

osMessageQueueGetSpace()

uint32_t osMessageQueueGetSpace

(

osMessageQueueId_t

mq_id

)

Get number of available slots for messages in a Message Queue.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

number of available slots for messages.

Definition at line 2377 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (mq_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<uint32_t>(static_cast<StkMessageQueue *>(mq_id)->m_mq.GetSpace());
    }

    return result;
}

References stk::sync::MessageQueue::GetSpace(), and StkMessageQueue::m_mq.

Here is the call graph for this function:

osMessageQueueNew()

osMessageQueueId_t osMessageQueueNew	(	uint32_t	msg_count,
		uint32_t	msg_size,
		const osMessageQueueAttr_t *	attr )

Create and Initialize a Message Queue object.

Parameters

[in]	msg_count	maximum number of messages in queue.
[in]	msg_size	maximum message size in bytes.
[in]	attr	message queue attributes; NULL: default values.

Returns

message queue ID for reference by other functions or NULL in case of error.

Definition at line 2198 of file cmsis_os2_stk.cpp.

{
    osMessageQueueId_t result;

    if (IsIrqContext() || (msg_count == 0U) || (msg_size == 0U) ||
        (msg_count > stk::sync::MessageQueue::CAPACITY_MAX))
    {
        result = nullptr;
    }
    else
    {
        const char      *const name    = ((attr != nullptr) ? attr->name    : nullptr);
        void            *const cb_mem  = ((attr != nullptr) ? attr->cb_mem  : nullptr);
        const uint32_t   cb_sz         = ((attr != nullptr) ? attr->cb_size : 0U);
        void            *const ext_buf = ((attr != nullptr) ? attr->mq_mem  : nullptr);
        const uint32_t   ext_buf_size  = ((attr != nullptr) ? attr->mq_size : 0U);

        const uint32_t buf_required = (msg_count * msg_size);

        StkMessageQueue *mq;

        if ((ext_buf != nullptr) && (ext_buf_size >= buf_required))
        {
            // Data buffer: use caller-supplied memory.
            mq = PlacementNewOrHeap<StkMessageQueue>(cb_mem, cb_sz,
                msg_count, msg_size, name, static_cast<uint8_t *>(ext_buf));
        }
        else
        {
            // Data buffer: heap-allocated inside StkMessageQueue constructor.
            mq = PlacementNewOrHeap<StkMessageQueue>(cb_mem, cb_sz,
                msg_count, msg_size, name);

            // Validate
            if (mq != nullptr)
            {
                if (mq->m_mq.GetBuffer() == nullptr)
                {
                    ObjDestroy(mq);
                    mq = nullptr;
                }
            }
        }

        result = static_cast<osMessageQueueId_t>(mq);
    }

    return result;
}

References stk::sync::MessageQueue::CAPACITY_MAX, osMessageQueueAttr_t::cb_mem, osMessageQueueAttr_t::cb_size, stk::sync::MessageQueue::GetBuffer(), IsIrqContext(), StkMessageQueue::m_mq, osMessageQueueAttr_t::mq_mem, osMessageQueueAttr_t::mq_size, osMessageQueueAttr_t::name, ObjDestroy(), and PlacementNewOrHeap().

Here is the call graph for this function:

osMessageQueuePut()

osStatus_t osMessageQueuePut	(	osMessageQueueId_t	mq_id,
		const void *	msg_ptr,
		uint8_t	msg_prio,
		uint32_t	timeout )

Put a Message into a Queue or timeout if Queue is full.

Parameters

[in]	mq_id	message queue ID obtained by osMessageQueueNew.
[in]	msg_ptr	pointer to buffer with message to put into a queue.
[in]	msg_prio	message priority.
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

status code that indicates the execution status of the function.

Definition at line 2265 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if ((mq_id == nullptr) || (msg_ptr == nullptr))
    {
        result = osErrorParameter;
    }
    else if (IsIrqContext() && (timeout != 0U))
    {
        result = osErrorISR;
    }
    else
    {
        const stk::Timeout stk_timeout = CmsisTimeoutToStk(timeout);

        if (!static_cast<StkMessageQueue *>(mq_id)->m_mq.Put(msg_ptr, stk_timeout))
        {
            result = ((stk_timeout == stk::NO_WAIT) ? osErrorResource : osErrorTimeout);
        }
        else
        {
            result = osOK;
        }
    }

    return result;
}

References CmsisTimeoutToStk(), IsIrqContext(), stk::NO_WAIT, osErrorISR, osErrorParameter, osErrorResource, osErrorTimeout, and osOK.

Here is the call graph for this function:

osMessageQueueReset()

osStatus_t osMessageQueueReset

(

osMessageQueueId_t

mq_id

)

Reset a Message Queue to initial empty state.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

status code that indicates the execution status of the function.

Definition at line 2393 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (mq_id == nullptr)
    {
        result = osErrorParameter;
    }
    else
    {
        static_cast<StkMessageQueue *>(mq_id)->m_mq.Reset();
        result = osOK;
    }

    return result;
}

References IsIrqContext(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osMutexAcquire()

osStatus_t osMutexAcquire	(	osMutexId_t	mutex_id,
		uint32_t	timeout )

Acquire a Mutex or timeout if it is locked.

Parameters

[in]	mutex_id	mutex ID obtained by osMutexNew.
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

status code that indicates the execution status of the function.

Definition at line 1772 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (mutex_id == nullptr)
    {
        result = osErrorParameter;
    }
    else
    {
        StkMutex *m = static_cast<StkMutex *>(mutex_id);
        const stk::Timeout stk_timeout = CmsisTimeoutToStk(timeout);

        const bool acquired = m->m_mutex.TimedLock(stk_timeout);
        if (!acquired)
        {
            result = ((stk_timeout == stk::NO_WAIT) ? osErrorResource : osErrorTimeout);
        }
        else
        {
            result = osOK;
        }
    }

    return result;
}

References CmsisTimeoutToStk(), IsIrqContext(), StkMutex::m_mutex, stk::NO_WAIT, osErrorISR, osErrorParameter, osErrorResource, osErrorTimeout, osOK, and stk::sync::Mutex::TimedLock().

Here is the call graph for this function:

osMutexDelete()

osStatus_t osMutexDelete

(

osMutexId_t

mutex_id

)

Delete a Mutex object.

Parameters

[in]

mutex_id

mutex ID obtained by osMutexNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1841 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (mutex_id == nullptr)
    {
        result = osErrorParameter;
    }
    else
    {
        ObjDestroy(static_cast<StkMutex *>(mutex_id));
        result = osOK;
    }

    return result;
}

References IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osMutexGetName()

const char * osMutexGetName

(

osMutexId_t

mutex_id

)

Get name of a Mutex object.

Parameters

[in]

mutex_id

mutex ID obtained by osMutexNew.

Returns

name as null-terminated string.

Definition at line 1756 of file cmsis_os2_stk.cpp.

{
    const char *result;

    if (mutex_id == nullptr)
    {
        result = nullptr;
    }
    else
    {
        result = static_cast<StkMutex *>(mutex_id)->m_mutex.GetTraceName();
    }

    return result;
}

osMutexGetOwner()

osThreadId_t osMutexGetOwner

(

osMutexId_t

mutex_id

)

Get Thread which owns a Mutex object.

Parameters

[in]

mutex_id

mutex ID obtained by osMutexNew.

Returns

thread ID of owner thread or NULL when mutex was not acquired.

Definition at line 1824 of file cmsis_os2_stk.cpp.

{
    osThreadId_t result;

    if (mutex_id == nullptr)
    {
        result = nullptr;
    }
    else
    {
        result = StkThread::ConvertTIdToThreadId(
            static_cast<StkMutex *>(mutex_id)->m_mutex.GetOwner());
    }

    return result;
}

References StkThread::ConvertTIdToThreadId().

Here is the call graph for this function:

osMutexNew()

osMutexId_t osMutexNew

(

const osMutexAttr_t *

attr

)

Create and Initialize a Mutex object.

Parameters

[in]

attr

mutex attributes; NULL: default values.

Returns

mutex ID for reference by other functions or NULL in case of error.

Definition at line 1722 of file cmsis_os2_stk.cpp.

{
    osMutexId_t result;

    if (IsIrqContext())
    {
        result = nullptr;
    }
    else
    {
        // osMutexPrioInherit: ignored, supported by default.
        // osMutexRecursive: ignored, sync::Mutex is always recursive.
        // osMutexRobust: will assert as unsafe code.
        const char *const name   = ((attr != nullptr) ? attr->name    : nullptr);
        void       *const cb_mem = ((attr != nullptr) ? attr->cb_mem  : nullptr);
        const uint32_t    cb_sz  = ((attr != nullptr) ? attr->cb_size : 0U);
        const bool        robust = ((attr != nullptr) && ((attr->attr_bits & osMutexRobust) != 0U));

        // disallow osMutexRobust
        STK_ASSERT(!robust);
        if (robust)
        {
            result = nullptr;
        }
        else
        {
            StkMutex *const m = PlacementNewOrHeap<StkMutex>(cb_mem, cb_sz, name);
            result = static_cast<osMutexId_t>(m);
        }
    }

    return result;
}

References osMutexAttr_t::attr_bits, osMutexAttr_t::cb_mem, osMutexAttr_t::cb_size, IsIrqContext(), osMutexAttr_t::name, osMutexRobust, PlacementNewOrHeap(), and STK_ASSERT.

Here is the call graph for this function:

osMutexRelease()

osStatus_t osMutexRelease

(

osMutexId_t

mutex_id

)

Release a Mutex that was acquired by osMutexAcquire.

Parameters

[in]

mutex_id

mutex ID obtained by osMutexNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1803 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (mutex_id == nullptr)
    {
        result = osErrorParameter;
    }
    else
    {
        static_cast<StkMutex *>(mutex_id)->m_mutex.Unlock();
        result = osOK;
    }

    return result;
}

References IsIrqContext(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osSemaphoreAcquire()

osStatus_t osSemaphoreAcquire	(	osSemaphoreId_t	semaphore_id,
		uint32_t	timeout )

Acquire a Semaphore token or timeout if no tokens are available.

Parameters

[in]	semaphore_id	semaphore ID obtained by osSemaphoreNew.
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

status code that indicates the execution status of the function.

Definition at line 1909 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (semaphore_id == nullptr)
    {
        result = osErrorParameter;
    }
    else if (IsIrqContext() && (timeout != 0U))
    {
        result = osErrorISR;
    }
    else
    {
        StkSemaphore *sem = static_cast<StkSemaphore *>(semaphore_id);
        const stk::Timeout stk_timeout = CmsisTimeoutToStk(timeout);

        const bool acquired = sem->m_semaphore.Wait(stk_timeout);
        if (!acquired)
        {
            result = ((stk_timeout == stk::NO_WAIT) ? osErrorResource : osErrorTimeout);
        }
        else
        {
            result = osOK;
        }
    }

    return result;
}

References CmsisTimeoutToStk(), IsIrqContext(), StkSemaphore::m_semaphore, stk::NO_WAIT, osErrorISR, osErrorParameter, osErrorResource, osErrorTimeout, osOK, and stk::sync::Semaphore::Wait().

Here is the call graph for this function:

osSemaphoreDelete()

osStatus_t osSemaphoreDelete

(

osSemaphoreId_t

semaphore_id

)

Delete a Semaphore object.

Parameters

[in]

semaphore_id

semaphore ID obtained by osSemaphoreNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1974 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (semaphore_id == nullptr)
    {
        result = osErrorParameter;
    }
    else
    {
        ObjDestroy(static_cast<StkSemaphore *>(semaphore_id));
        result = osOK;
    }

    return result;
}

References IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osSemaphoreGetCount()

uint32_t osSemaphoreGetCount

(

osSemaphoreId_t

semaphore_id

)

Get current Semaphore token count.

Parameters

[in]

semaphore_id

semaphore ID obtained by osSemaphoreNew.

Returns

number of tokens available.

Definition at line 1957 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (semaphore_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<uint32_t>(
            static_cast<StkSemaphore *>(semaphore_id)->m_semaphore.GetCount());
    }

    return result;
}

References stk::sync::Semaphore::GetCount(), and StkSemaphore::m_semaphore.

Here is the call graph for this function:

osSemaphoreGetName()

const char * osSemaphoreGetName

(

osSemaphoreId_t

semaphore_id

)

Get name of a Semaphore object.

Parameters

[in]

semaphore_id

semaphore ID obtained by osSemaphoreNew.

Returns

name as null-terminated string.

Definition at line 1893 of file cmsis_os2_stk.cpp.

{
    const char *result;

    if (semaphore_id == nullptr)
    {
        result = nullptr;
    }
    else
    {
        result = static_cast<StkSemaphore *>(semaphore_id)->m_semaphore.GetTraceName();
    }

    return result;
}

osSemaphoreNew()

osSemaphoreId_t osSemaphoreNew	(	uint32_t	max_count,
		uint32_t	initial_count,
		const osSemaphoreAttr_t *	attr )

Create and Initialize a Semaphore object.

Parameters

[in]	max_count	maximum number of available tokens.
[in]	initial_count	initial number of available tokens.
[in]	attr	semaphore attributes; NULL: default values.

Returns

semaphore ID for reference by other functions or NULL in case of error.

Definition at line 1867 of file cmsis_os2_stk.cpp.

{
    osSemaphoreId_t result;

    if (IsIrqContext() || (max_count == 0U) || (initial_count > max_count))
    {
        result = nullptr;
    }
    else
    {
        // STK Semaphore uses uint16_t counters, clamp to stk::sync::Semaphore::COUNT_MAX.
        const uint16_t mc = static_cast<uint16_t>(stk::Min(max_count,     static_cast<uint32_t>(stk::sync::Semaphore::COUNT_MAX)));
        const uint16_t ic = static_cast<uint16_t>(stk::Min(initial_count, static_cast<uint32_t>(stk::sync::Semaphore::COUNT_MAX)));

        const char *const name   = ((attr != nullptr) ? attr->name    : nullptr);
        void       *const cb_mem = ((attr != nullptr) ? attr->cb_mem  : nullptr);
        const uint32_t    cb_sz  = ((attr != nullptr) ? attr->cb_size : 0U);

        StkSemaphore *const sem = PlacementNewOrHeap<StkSemaphore>(cb_mem, cb_sz, ic, mc, name);
        result = static_cast<osSemaphoreId_t>(sem);
    }

    return result;
}

References osSemaphoreAttr_t::cb_mem, osSemaphoreAttr_t::cb_size, stk::sync::Semaphore::COUNT_MAX, IsIrqContext(), stk::Min(), osSemaphoreAttr_t::name, and PlacementNewOrHeap().

Here is the call graph for this function:

osSemaphoreRelease()

osStatus_t osSemaphoreRelease

(

osSemaphoreId_t

semaphore_id

)

Release a Semaphore token up to the initial maximum count.

Parameters

[in]

semaphore_id

semaphore ID obtained by osSemaphoreNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1940 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (semaphore_id == nullptr)
    {
        result = osErrorParameter;
    }
    else
    {
        static_cast<StkSemaphore *>(semaphore_id)->m_semaphore.Signal();
        result = osOK;
    }

    return result;
}

References osErrorParameter, and osOK.

osThreadDetach()

osStatus_t osThreadDetach

(

osThreadId_t

thread_id

)

Detach a thread (thread storage can be reclaimed when thread terminates).

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

status code that indicates the execution status of the function.

Definition at line 1108 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (thread_id == nullptr)
    {
        result = osErrorParameter;
    }
    else
    {
        StkThread *const th = static_cast<StkThread *>(thread_id);

        const stk::sync::ScopedCriticalSection cs_;

        switch (th->m_join_state)
        {
        case StkThread::JoinState::Detached:
            // already detached - CMSIS spec says this is an error
            result = osError;
            break;

        case StkThread::JoinState::Joined:
            // already joined - cannot detach
            result = osError;
            break;

        case StkThread::JoinState::Exited:
            // thread finished but nobody joined yet, transition to Detached
            // and free the control block now, since no joiner will ever do it
            th->m_join_state = StkThread::JoinState::Detached;
            ObjDestroy(th); // safe: task slot already freed by the kernel
            result = osOK;
            break;

        case StkThread::JoinState::Joinable:
            // normal case: thread is still running or just hasn't been joined
            th->m_join_state = StkThread::JoinState::Detached;
            result = osOK;
            break;

        default:
            result = osError;
            break;
        }
    }

    return result;
}

References StkThread::Detached, StkThread::Exited, IsIrqContext(), StkThread::Joinable, StkThread::Joined, StkThread::m_join_state, ObjDestroy(), osError, osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osThreadEnumerate()

uint32_t osThreadEnumerate	(	osThreadId_t *	thread_array,
		uint32_t	array_items )

Enumerate active threads.

Parameters

[out]	thread_array	pointer to array for retrieving thread IDs.
[in]	array_items	maximum number of items in array for retrieving thread IDs.

Returns

number of enumerated threads.

Definition at line 1283 of file cmsis_os2_stk.cpp.

{
    uint32_t result_count = 0U;
    const osKernelState_t kstate = osKernelGetState();

    // kernel must be active and buffer must be valid
    if ((kstate != osKernelInactive) && (thread_array != nullptr) && (array_items != 0U))
    {
        // cast the raw pointer array to the expected ITask* destination type
        stk::ITask **const tasks_destination = reinterpret_cast<stk::ITask **>(
            reinterpret_cast<void *>(thread_array));

        // bind raw destination buffer into a temporary ArrayView object
        const size_t count = g_StkKernel.EnumerateTasks(
            stk::ArrayView<stk::ITask *>(tasks_destination, static_cast<size_t>(array_items)));

        result_count = static_cast<uint32_t>(count);
    }

    return result_count;
}

References g_StkKernel, osKernelGetState(), and osKernelInactive.

Here is the call graph for this function:

osThreadExit()

void osThreadExit

(

void

)

Terminate execution of current running thread.

Definition at line 1224 of file cmsis_os2_stk.cpp.

{
    StkThread *const th = static_cast<StkThread *>(osThreadGetId());

    g_StkKernel.ScheduleTaskRemoval(th);

    // Wait for removal.
    for (;;)
    {
        stk::Yield();
    }
}

References __NO_RETURN, g_StkKernel, osThreadGetId(), and stk::Yield().

Here is the call graph for this function:

osThreadFeedWatchdog()

osStatus_t osThreadFeedWatchdog

(

uint32_t

ticks

)

Feed watchdog of the current running thread.

Parameters

[in]

ticks

interval in kernel ticks until the thread watchdog expires, or 0 to stop the watchdog

Returns

status code that indicates the execution status of the function.

osThreadFlagsClear()

uint32_t osThreadFlagsClear

(

uint32_t

flags

)

Clear the specified Thread Flags of current running thread.

Parameters

[in]

flags

specifies the flags of the thread that shall be cleared.

Returns

thread flags before clearing or error code if highest bit set.

Definition at line 1326 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    osThreadId_t const self = osThreadGetId();
    if (self == nullptr)
    {
        result = osFlagsErrorUnknown;
    }
    else
    {
        StkThread *th = static_cast<StkThread *>(self);
        result = StkFlagsResultToCmsis(th->m_thread_flags.Clear(flags));
    }

    return result;
}

References stk::sync::EventFlags::Clear(), StkThread::m_thread_flags, osFlagsErrorUnknown, osThreadGetId(), and StkFlagsResultToCmsis().

Here is the call graph for this function:

osThreadFlagsGet()

uint32_t osThreadFlagsGet

(

void

)

Get the current Thread Flags of current running thread.

Returns

current thread flags.

Definition at line 1344 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    osThreadId_t const self = osThreadGetId();
    if (self == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = static_cast<StkThread *>(self)->m_thread_flags.Get();
    }

    return result;
}

References osThreadGetId().

Here is the call graph for this function:

osThreadFlagsSet()

uint32_t osThreadFlagsSet	(	osThreadId_t	thread_id,
		uint32_t	flags )

Set the specified Thread Flags of a thread.

Parameters

[in]	thread_id	thread ID obtained by osThreadNew or osThreadGetId.
[in]	flags	specifies the flags of the thread that shall be set.

Returns

thread flags after setting or error code if highest bit set.

Definition at line 1309 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if ((thread_id == nullptr) || ((flags & osFlagsError) != 0U))
    {
        result = osFlagsErrorParameter;
    }
    else
    {
        StkThread *th = static_cast<StkThread *>(thread_id);
        result = StkFlagsResultToCmsis(th->m_thread_flags.Set(flags));
    }

    return result;
}

References StkThread::m_thread_flags, osFlagsError, osFlagsErrorParameter, stk::sync::EventFlags::Set(), and StkFlagsResultToCmsis().

Here is the call graph for this function:

osThreadFlagsWait()

uint32_t osThreadFlagsWait	(	uint32_t	flags,
		uint32_t	options,
		uint32_t	timeout )

Wait for one or more Thread Flags of the current running thread to become signaled.

Parameters

[in]	flags	specifies the flags to wait for.
[in]	options	specifies flags options (osFlagsXxxx).
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

thread flags before clearing or error code if highest bit set.

Definition at line 1361 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (IsIrqContext())
    {
        result = osFlagsErrorISR;
    }
    else
    {
        osThreadId_t const self = osThreadGetId();
        if (self == nullptr)
        {
            result = osFlagsErrorUnknown;
        }
        else
        {
            StkThread *th = static_cast<StkThread *>(self);
            result = StkFlagsResultToCmsis(th->m_thread_flags.Wait(flags,
                CmsisFlagsOptionsToStk(options), CmsisTimeoutToStk(timeout)));
        }
    }

    return result;
}

References CmsisFlagsOptionsToStk(), CmsisTimeoutToStk(), IsIrqContext(), StkThread::m_thread_flags, osFlagsErrorISR, osFlagsErrorUnknown, osThreadGetId(), StkFlagsResultToCmsis(), and stk::sync::EventFlags::Wait().

Here is the call graph for this function:

osThreadGetAffinityMask()

uint32_t osThreadGetAffinityMask

(

osThreadId_t

thread_id

)

Get current processor affinity mask of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

current processor affinity mask of the specified thread.

osThreadGetClass()

uint32_t osThreadGetClass

(

osThreadId_t

thread_id

)

Get safety class of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

safety class of the specified thread.

osThreadGetCount()

uint32_t osThreadGetCount

(

void

)

Get number of active threads.

Returns

number of active threads.

Definition at line 1268 of file cmsis_os2_stk.cpp.

{
    uint32_t count = 0U;

    if (osKernelGetState() != osKernelInactive)
    {
        // avoid race with OnTick
        const stk::sync::ScopedCriticalSection cs_;

        count = static_cast<uint32_t>(g_StkKernel.GetSwitchStrategy()->GetSize());
    }

    return count;
}

References g_StkKernel, osKernelGetState(), and osKernelInactive.

Here is the call graph for this function:

osThreadGetId()

osThreadId_t osThreadGetId

(

void

)

Return the thread ID of the current running thread.

Returns

thread ID for reference by other functions or NULL in case of error.

Definition at line 906 of file cmsis_os2_stk.cpp.

{
    osThreadId_t threadId = nullptr;

    const osKernelState_t kernel_state = osKernelGetState();
    const bool            is_irq       = IsIrqContext();

    if ((kernel_state != osKernelInactive) && !is_irq)
    {
        // STK's GetTid() returns the ITask pointer cast to Word.
        threadId = StkThread::ConvertTIdToThreadId(stk::GetTid());
    }

    return threadId;
}

References StkThread::ConvertTIdToThreadId(), stk::GetTid(), IsIrqContext(), osKernelGetState(), and osKernelInactive.

Referenced by osThreadExit(), osThreadFlagsClear(), osThreadFlagsGet(), osThreadFlagsWait(), osThreadGetState(), and osThreadJoin().

Here is the call graph for this function:

Here is the caller graph for this function:

osThreadGetName()

const char * osThreadGetName

(

osThreadId_t

thread_id

)

Get name of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

name as null-terminated string.

Definition at line 890 of file cmsis_os2_stk.cpp.

{
    const char *result;

    if (thread_id == nullptr)
    {
        result = nullptr;
    }
    else
    {
        result = static_cast<StkThread *>(thread_id)->m_name;
    }

    return result;
}

osThreadGetPriority()

osPriority_t osThreadGetPriority

(

osThreadId_t

thread_id

)

Get current priority of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

current priority value of the specified thread.

Definition at line 1007 of file cmsis_os2_stk.cpp.

{
    osPriority_t result;

    if (IsIrqContext() || (thread_id == nullptr))
    {
        result = osPriorityError;
    }
    else
    {
        StkThread *const th = static_cast<StkThread *>(thread_id);
        result = StkPrioToCmsis(th->m_stk_priority);
    }

    return result;
}

References IsIrqContext(), StkThread::m_stk_priority, osPriorityError, and StkPrioToCmsis().

Here is the call graph for this function:

osThreadGetStackSize()

uint32_t osThreadGetStackSize

(

osThreadId_t

thread_id

)

Get stack size of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

stack size in bytes.

Definition at line 947 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (thread_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        StkThread *const th = static_cast<StkThread *>(thread_id);
        result = static_cast<uint32_t>(th->GetStackSize()) * sizeof(stk::Word);
    }

    return result;
}

References StkThread::GetStackSize().

Here is the call graph for this function:

osThreadGetStackSpace()

uint32_t osThreadGetStackSpace

(

osThreadId_t

thread_id

)

Get available stack space of a thread based on stack watermark recording during execution.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

remaining stack space in bytes.

Definition at line 964 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (thread_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        StkThread *const th = static_cast<StkThread *>(thread_id);
        result = static_cast<uint32_t>(th->GetStackSpace() * sizeof(stk::Word));
    }

    return result;
}

References stk::IStackMemory::GetStackSpace().

Here is the call graph for this function:

osThreadGetState()

osThreadState_t osThreadGetState

(

osThreadId_t

thread_id

)

Get current thread state of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

current thread state of the specified thread.

Definition at line 922 of file cmsis_os2_stk.cpp.

{
    osThreadState_t threadState = osThreadError;

    if (!IsIrqContext() && (thread_id != nullptr))
    {
        const StkThread *const th = static_cast<StkThread *>(thread_id);

        if (th->m_suspended)
        {
            threadState = osThreadBlocked;
        }
        else if (thread_id == osThreadGetId())
        {
            threadState = osThreadRunning;
        }
        else
        {
            threadState = osThreadReady;
        }
    }

    return threadState;
}

References IsIrqContext(), StkThread::m_suspended, osThreadBlocked, osThreadError, osThreadGetId(), osThreadReady, and osThreadRunning.

Here is the call graph for this function:

osThreadGetZone()

uint32_t osThreadGetZone

(

osThreadId_t

thread_id

)

Get MPU protected zone of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

MPU protected zone of the specified thread.

References __NO_RETURN.

osThreadJoin()

osStatus_t osThreadJoin

(

osThreadId_t

thread_id

)

Wait for specified thread to terminate.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

status code that indicates the execution status of the function.

Definition at line 1161 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (thread_id == nullptr)
    {
        result = osErrorParameter;
    }
    // Self-join is undefined behavior per POSIX / CMSIS spec.
    else if (thread_id == osThreadGetId())
    {
        result = osErrorParameter;
    }
    else
    {
        StkThread *th = static_cast<StkThread *>(thread_id);

        stk::sync::ScopedCriticalSection cs_;

        // Only joinable threads can be joined.
        if (th->m_join_state == StkThread::JoinState::Detached)
        {
            result = osError;
        }
        // Double-join: second caller always gets an error.
        else if (th->m_join_state == StkThread::JoinState::Joined)
        {
            result = osError;
        }
        else
        {
            th->m_join_state = StkThread::JoinState::Joined;

            // Block until OnExit() fires (transitions state to Exited).
            // m_join_cv.Wait() atomically releases m_join_mutex and suspends.
            while (th->m_join_state == StkThread::JoinState::Joined)
            {
                // WAIT_INFINITE - CMSIS osThreadJoin has no timeout parameter.
                STK_UNUSED(th->m_join_cv.Wait(cs_, stk::WAIT_INFINITE));
            }

            // At this point m_join_state == Exited (or Detached if someone
            // raced osThreadDetach - treat that as an error).
            if (th->m_join_state != StkThread::JoinState::Exited)
            {
                result = osError;
            }
            else
            {
                // Free the control block - the kernel has already freed the slot.
                ObjDestroy(th);
                result = osOK;
            }
        }
    }

    return result;
}

References StkThread::Detached, StkThread::Exited, IsIrqContext(), StkThread::Joined, StkThread::m_join_cv, StkThread::m_join_state, ObjDestroy(), osError, osErrorISR, osErrorParameter, osOK, osThreadGetId(), STK_UNUSED, stk::sync::ConditionVariable::Wait(), and stk::WAIT_INFINITE.

Here is the call graph for this function:

osThreadNew()

osThreadId_t osThreadNew	(	osThreadFunc_t	func,
		void *	argument,
		const osThreadAttr_t *	attr )

Create a thread and add it to Active Threads.

Parameters

[in]	func	thread function.
[in]	argument	pointer that is passed to the thread function as start argument.
[in]	attr	thread attributes; NULL: default values.

Returns

thread ID for reference by other functions or NULL in case of error.

Definition at line 807 of file cmsis_os2_stk.cpp.

{
    osThreadId_t result = nullptr;

    const bool          is_irq         = IsIrqContext();
    const osKernelState_t kernel_state = osKernelGetState();

    // validate environment and arguments
    bool is_valid = (!is_irq && (func != nullptr) && (kernel_state != osKernelInactive));

    // validate priority value
    osPriority_t cmsis_prio = osPriorityNormal;
    if (is_valid && (attr != nullptr))
    {
        if (attr->priority != osPriorityNone)
        {
            cmsis_prio = attr->priority;
        }

        if ((cmsis_prio < osPriorityIdle) || (cmsis_prio > osPriorityISR))
        {
            is_valid = false; // invalidate object creation
        }
    }

    if (is_valid)
    {
        const bool    is_joinable = (attr != nullptr) && ((attr->attr_bits & osThreadJoinable) != 0U);
        void *const   cb_mem      = ((attr != nullptr) ? attr->cb_mem  : nullptr);
        const uint32_t cb_size    = ((attr != nullptr) ? attr->cb_size : 0U);

        StkThread *th = PlacementNewOrHeap<StkThread>(cb_mem, cb_size);
        if (th != nullptr)
        {
            th->m_func       = func;
            th->m_argument   = argument;
            th->m_name       = (attr != nullptr) ? attr->name : nullptr;
            th->m_join_state = (is_joinable ? StkThread::JoinState::Joinable : StkThread::JoinState::Detached);

            // stack configuration
            if (attr != nullptr)
            {
                if ((attr->stack_mem != nullptr) && (attr->stack_size != 0U))
                {
                    th->m_stack       = static_cast<stk::Word *>(attr->stack_mem);
                    th->m_stack_size  = stk::Max<size_t>(attr->stack_size / sizeof(stk::Word), CMSIS_STK_MIN_STACK_WORDS);
                    th->m_stack_owned = false;
                }
            }

            // allocate stack memory if not caller-provided
            if (th->m_stack == nullptr)
            {
                const size_t stack_words = CMSIS_STK_DEFAULT_STACK_WORDS;

                th->m_stack = new (std::nothrow) stk::Word[stack_words];
                STK_ASSERT(th->m_stack != nullptr);

                if (th->m_stack == nullptr)
                {
                    ObjDestroy(th);
                    th = nullptr;
                }
                else
                {
                    th->m_stack_size  = stack_words;
                    th->m_stack_owned = true;
                }
            }

            // finalize and register the thread
            if (th != nullptr)
            {
                th->m_stk_priority = CmsisPrioToStk(cmsis_prio);
                g_StkKernel.AddTask(th);
                result = static_cast<osThreadId_t>(th);
            }
        }
    }

    return result; // The solitary exit point
}

References osThreadAttr_t::attr_bits, osThreadAttr_t::cb_mem, osThreadAttr_t::cb_size, CMSIS_STK_DEFAULT_STACK_WORDS, CMSIS_STK_MIN_STACK_WORDS, CmsisPrioToStk(), StkThread::Detached, g_StkKernel, IsIrqContext(), StkThread::Joinable, StkThread::m_argument, StkThread::m_func, StkThread::m_join_state, StkThread::m_name, StkThread::m_stack, StkThread::m_stack_owned, StkThread::m_stack_size, StkThread::m_stk_priority, stk::Max(), osThreadAttr_t::name, ObjDestroy(), osKernelGetState(), osKernelInactive, osPriorityIdle, osPriorityISR, osPriorityNone, osPriorityNormal, osThreadJoinable, PlacementNewOrHeap(), osThreadAttr_t::priority, osThreadAttr_t::stack_mem, osThreadAttr_t::stack_size, and STK_ASSERT.

Here is the call graph for this function:

osThreadProtectPrivileged()

osStatus_t osThreadProtectPrivileged

(

void

)

Protect creation of privileged threads.

Returns

status code that indicates the execution status of the function.

osThreadResume()

osStatus_t osThreadResume

(

osThreadId_t

thread_id

)

Resume execution of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

status code that indicates the execution status of the function.

Definition at line 1071 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (thread_id == nullptr)
    {
        result = osErrorParameter;
    }
    else if (osKernelGetState() == osKernelInactive)
    {
        result = osErrorParameter;
    }
    else
    {
        StkThread *const th = static_cast<StkThread *>(thread_id);

        const stk::sync::ScopedCriticalSection cs_;

        if (!th->m_suspended)
        {
            result = osOK; // not suspended, nothing to do
        }
        else
        {
            g_StkKernel.ResumeTask(th);
            th->m_suspended = false;
            result = osOK;
        }
    }

    return result;
}

References g_StkKernel, IsIrqContext(), StkThread::m_suspended, osErrorISR, osErrorParameter, osKernelGetState(), osKernelInactive, and osOK.

Here is the call graph for this function:

osThreadResumeClass()

osStatus_t osThreadResumeClass	(	uint32_t	safety_class,
		uint32_t	mode )

Resume execution of threads for specified safety classes.

Parameters

[in]	safety_class	safety class.
[in]	mode	safety mode.

Returns

status code that indicates the execution status of the function.

osThreadSetAffinityMask()

osStatus_t osThreadSetAffinityMask	(	osThreadId_t	thread_id,
		uint32_t	affinity_mask )

Set processor affinity mask of a thread.

Parameters

[in]	thread_id	thread ID obtained by osThreadNew or osThreadGetId.
[in]	affinity_mask	processor affinity mask for the thread.

Returns

status code that indicates the execution status of the function.

osThreadSetPriority()

osStatus_t osThreadSetPriority	(	osThreadId_t	thread_id,
		osPriority_t	priority )

Change priority of a thread.

Parameters

[in]	thread_id	thread ID obtained by osThreadNew or osThreadGetId.
[in]	priority	new priority value for the thread function.

Returns

status code that indicates the execution status of the function.

Definition at line 981 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (thread_id == nullptr)
    {
        result = osErrorParameter;
    }
    else if ((priority < osPriorityIdle) || (priority > osPriorityISR))
    {
        result = osErrorParameter;
    }
    else
    {
        StkThread *const th = static_cast<StkThread *>(thread_id);
        th->m_stk_priority = CmsisPrioToStk(priority);
        result = osOK;
    }

    return result;
}

References CmsisPrioToStk(), IsIrqContext(), StkThread::m_stk_priority, osErrorISR, osErrorParameter, osOK, osPriorityIdle, and osPriorityISR.

Here is the call graph for this function:

osThreadSuspend()

osStatus_t osThreadSuspend

(

osThreadId_t

thread_id

)

Suspend execution of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

status code that indicates the execution status of the function.

Definition at line 1045 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (thread_id == nullptr)
    {
        result = osErrorParameter;
    }
    else if (osKernelGetState() == osKernelInactive)
    {
        result = osErrorParameter;
    }
    else
    {
        StkThread *const th = static_cast<StkThread *>(thread_id);
        g_StkKernel.SuspendTask(th, th->m_suspended);
        result = osOK;
    }

    return result;
}

References g_StkKernel, IsIrqContext(), StkThread::m_suspended, osErrorISR, osErrorParameter, osKernelGetState(), osKernelInactive, and osOK.

Here is the call graph for this function:

osThreadSuspendClass()

osStatus_t osThreadSuspendClass	(	uint32_t	safety_class,
		uint32_t	mode )

Suspend execution of threads for specified safety classes.

Parameters

[in]	safety_class	safety class.
[in]	mode	safety mode.

Returns

status code that indicates the execution status of the function.

osThreadTerminate()

osStatus_t osThreadTerminate

(

osThreadId_t

thread_id

)

Terminate execution of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

status code that indicates the execution status of the function.

Definition at line 1237 of file cmsis_os2_stk.cpp.

{
    osStatus_t status = osErrorParameter;
    const bool is_active = (osKernelGetState() != osKernelInactive);

    if ((thread_id != nullptr) && !is_active)
    {
        StkThread *const th = static_cast<StkThread *>(thread_id);

        // avoid race conditions during termination
        const stk::sync::ScopedCriticalSection cs_;

        // RemoveTask triggers the STATE_REMOVE_PENDING path in the kernel,
        // which will call OnExit() before freeing the slot.
        g_StkKernel.ScheduleTaskRemoval(th);

        // For detached threads, free immediately (no joiner expected).
        // For joinable threads, OnExit() will wake the joiner; the joiner
        // calls ObjDestroy(). Do NOT free here.
        if (th->m_join_state == StkThread::JoinState::Detached)
        {
            ObjDestroy(th);
        }
        // else: joiner owns the lifetime

        status = osOK;
    }

    return status;
}

References StkThread::Detached, g_StkKernel, StkThread::m_join_state, ObjDestroy(), osErrorParameter, osKernelGetState(), osKernelInactive, and osOK.

Here is the call graph for this function:

osThreadTerminateZone()

osStatus_t osThreadTerminateZone

(

uint32_t

zone

)

Terminate execution of threads assigned to a specified MPU protected zone.

Parameters

[in]

zone

MPU protected zone.

Returns

status code that indicates the execution status of the function.

osThreadYield()

osStatus_t osThreadYield

(

void

)

Pass control to next thread that is in state READY.

Returns

status code that indicates the execution status of the function.

Definition at line 1024 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if (osKernelGetState() == osKernelInactive)
    {
        result = osError;
    }
    else
    {
        stk::Yield();
        result = osOK;
    }

    return result;
}

References IsIrqContext(), osError, osErrorISR, osKernelGetState(), osKernelInactive, osOK, and stk::Yield().

Here is the call graph for this function:

osTimerDelete()

osStatus_t osTimerDelete

(

osTimerId_t

timer_id

)

Delete a timer.

Parameters

[in]

timer_id

timer ID obtained by osTimerNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1553 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if ((timer_id == nullptr) || (g_TimerHost == nullptr))
    {
        result = osErrorParameter;
    }
    else
    {
        result = osOK;

        StkTimer *const tmr = static_cast<StkTimer *>(timer_id);

        if (tmr->IsActive())
        {
            if (!g_TimerHost->Stop(*tmr))
            {
                result = osError;
            }
        }

        if (result == osOK)
        {
            ObjDestroy(tmr);
        }
    }

    return result;
}

References g_TimerHost, stk::time::TimerHost::Timer::IsActive(), IsIrqContext(), ObjDestroy(), osError, osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osTimerGetName()

const char * osTimerGetName

(

osTimerId_t

timer_id

)

Get name of a timer.

Parameters

[in]

timer_id

timer ID obtained by osTimerNew.

Returns

name as null-terminated string.

Definition at line 1466 of file cmsis_os2_stk.cpp.

{
    const char *result;

    if (timer_id == nullptr)
    {
        result = nullptr;
    }
    else
    {
        result = static_cast<StkTimer *>(timer_id)->m_name;
    }

    return result;
}

osTimerIsRunning()

uint32_t osTimerIsRunning

(

osTimerId_t

timer_id

)

Check if a timer is running.

Parameters

[in]

timer_id

timer ID obtained by osTimerNew.

Returns

0 not running, 1 running.

Definition at line 1537 of file cmsis_os2_stk.cpp.

{
    uint32_t result;

    if (timer_id == nullptr)
    {
        result = 0U;
    }
    else
    {
        result = (static_cast<StkTimer *>(timer_id)->IsActive() ? 1U : 0U);
    }

    return result;
}

References stk::time::TimerHost::Timer::IsActive().

Here is the call graph for this function:

osTimerNew()

osTimerId_t osTimerNew	(	osTimerFunc_t	func,
		osTimerType_t	type,
		void *	argument,
		const osTimerAttr_t *	attr )

Create and Initialize a timer.

Parameters

[in]	func	function pointer to callback function.
[in]	type	osTimerOnce for one-shot or osTimerPeriodic for periodic behavior.
[in]	argument	argument to the timer callback function.
[in]	attr	timer attributes; NULL: default values.

Returns

timer ID for reference by other functions or NULL in case of error.

Definition at line 1438 of file cmsis_os2_stk.cpp.

{
    osTimerId_t result;

    if (IsIrqContext() || (func == nullptr))
    {
        result = nullptr;
    }
    else  if (osKernelGetState() == osKernelInactive)
    {
        result = nullptr;
    }
    else
    {
        const char *const name   = ((attr != nullptr) ? attr->name    : nullptr);
        void       *const cb_mem = ((attr != nullptr) ? attr->cb_mem  : nullptr);
        const uint32_t    cb_sz  = ((attr != nullptr) ? attr->cb_size : 0U);

        StkTimer::EnsureTimerHostCreated();

        StkTimer *const tmr = PlacementNewOrHeap<StkTimer>(cb_mem, cb_sz, func, type, argument, name);
        result = static_cast<osTimerId_t>(tmr);
    }

    return result;
}

References osTimerAttr_t::cb_mem, osTimerAttr_t::cb_size, StkTimer::EnsureTimerHostCreated(), IsIrqContext(), osTimerAttr_t::name, osKernelGetState(), osKernelInactive, and PlacementNewOrHeap().

Here is the call graph for this function:

osTimerStart()

osStatus_t osTimerStart	(	osTimerId_t	timer_id,
		uint32_t	ticks )

Start or restart a timer.

Parameters

[in]	timer_id	timer ID obtained by osTimerNew.
[in]	ticks	time ticks value of the timer.

Returns

status code that indicates the execution status of the function.

Definition at line 1482 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if ((timer_id == nullptr) || (g_TimerHost == nullptr))
    {
        result = osErrorParameter;
    }
    else
    {
        StkTimer *const tmr = static_cast<StkTimer *>(timer_id);

        const uint32_t period_ticks = ((tmr->m_type == osTimerPeriodic) ? ticks : 0U);
        tmr->m_period_ticks = period_ticks;

        const bool ok = g_TimerHost->Restart(*tmr, ticks, period_ticks);
        result = (ok ? osOK : osError);
    }

    return result;
}

References g_TimerHost, IsIrqContext(), StkTimer::m_period_ticks, StkTimer::m_type, osError, osErrorISR, osErrorParameter, osOK, and osTimerPeriodic.

Here is the call graph for this function:

osTimerStop()

osStatus_t osTimerStop

(

osTimerId_t

timer_id

)

Stop a timer.

Parameters

[in]

timer_id

timer ID obtained by osTimerNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1508 of file cmsis_os2_stk.cpp.

{
    osStatus_t result;

    if (IsIrqContext())
    {
        result = osErrorISR;
    }
    else if ((timer_id == nullptr) || (g_TimerHost == nullptr))
    {
        result = osErrorParameter;
    }
    else
    {
        StkTimer *const tmr = static_cast<StkTimer *>(timer_id);

        if (!tmr->IsActive())
        {
            result = osErrorResource;
        }
        else
        {
            result = (g_TimerHost->Stop(*tmr) ? osOK : osError);
        }
    }

    return result;
}

References g_TimerHost, stk::time::TimerHost::Timer::IsActive(), IsIrqContext(), osError, osErrorISR, osErrorParameter, osErrorResource, and osOK.

Here is the call graph for this function:

osWatchdogAlarm_Handler()

uint32_t osWatchdogAlarm_Handler

(

osThreadId_t

thread_id

)

Handler for expired thread watchdogs.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

new watchdog reload value or 0 to stop the watchdog.

osZoneSetup_Callback()

void osZoneSetup_Callback

(

uint32_t

zone

)

Setup MPU protected zone (called when zone changes).

Parameters

[in]

zone

zone number.
